HIIROYU
Spec
AII / Glazed

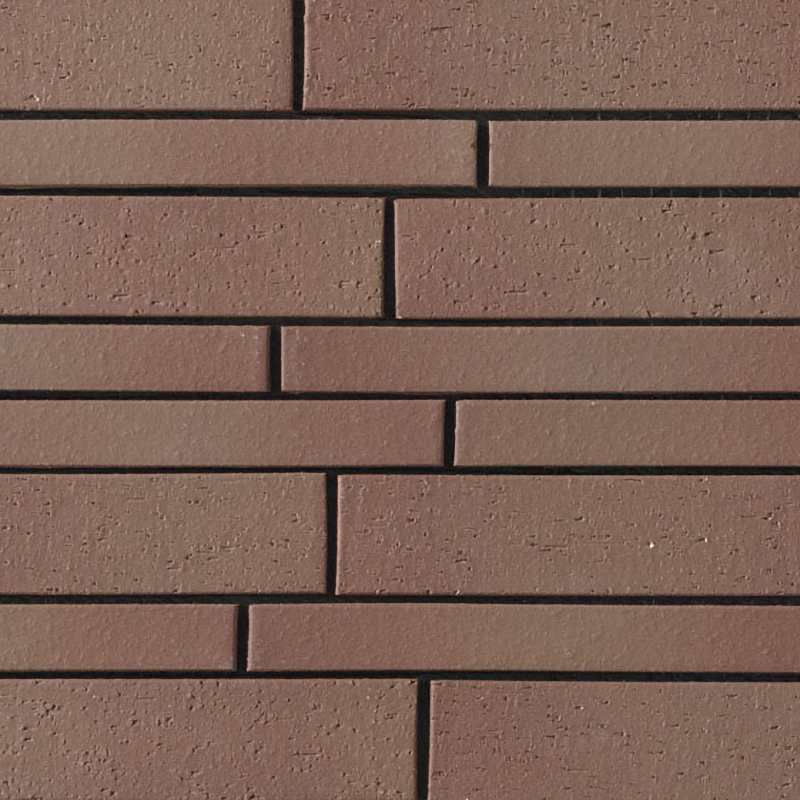

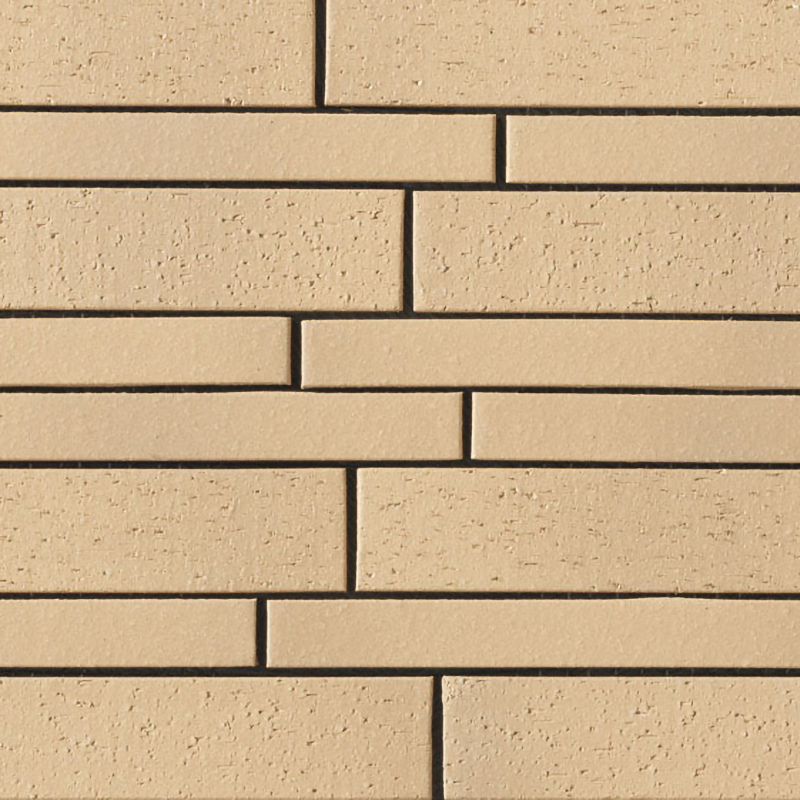

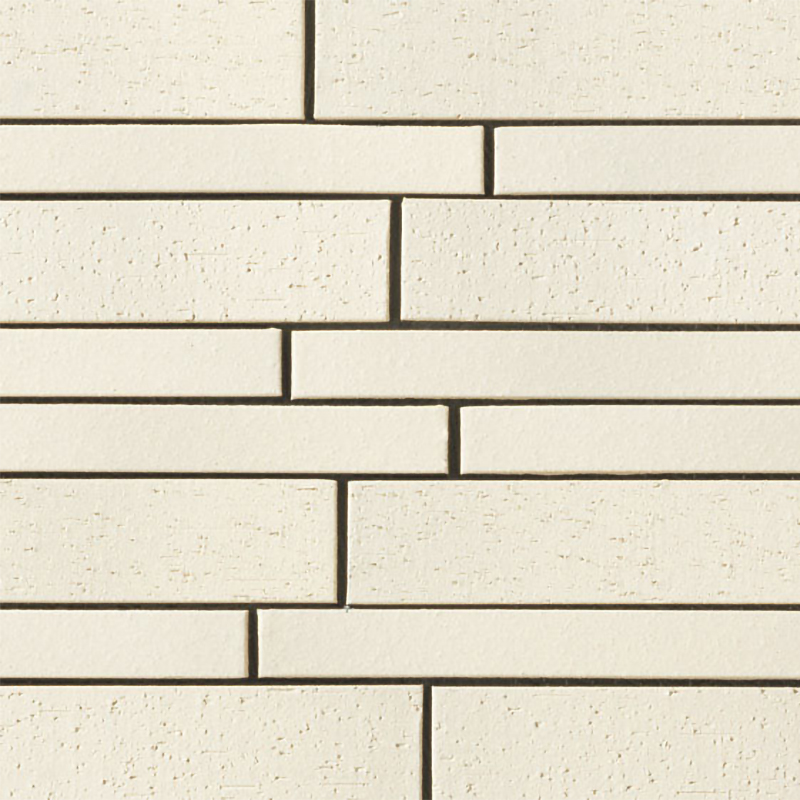

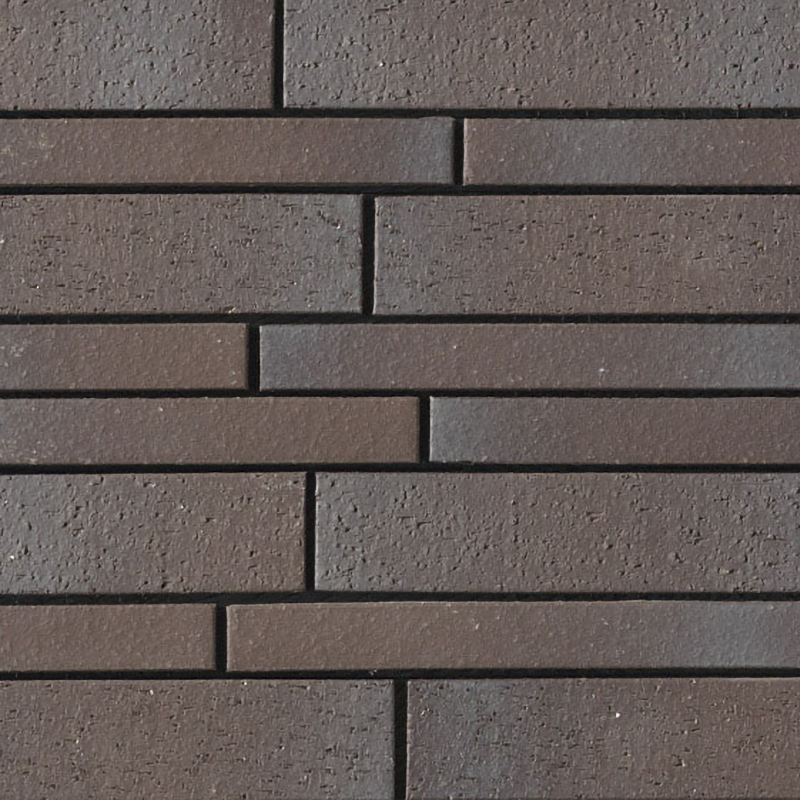

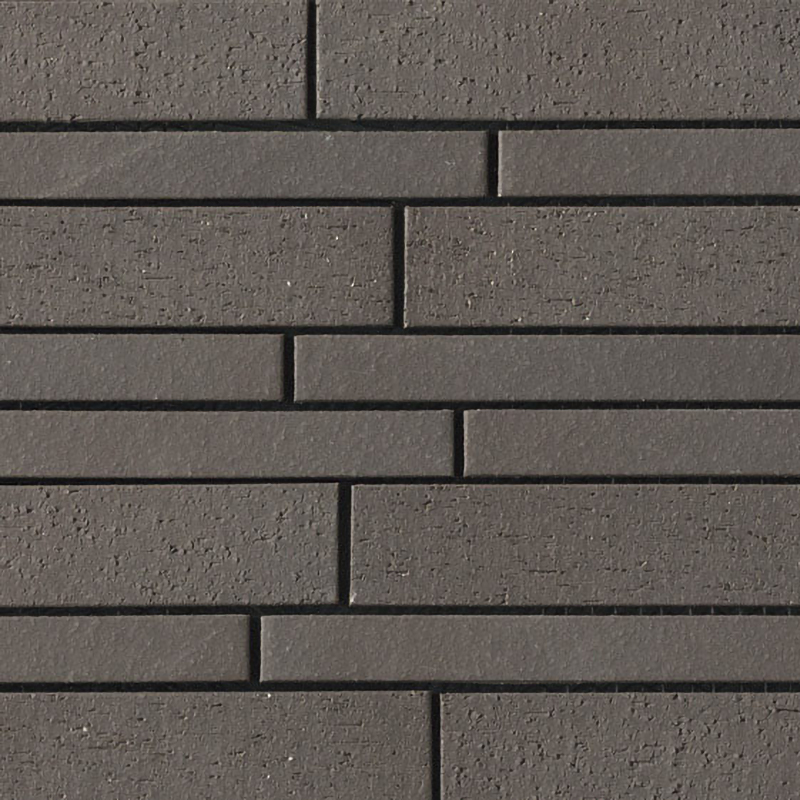

Field tile (Atype) FCY-R/A1~A7
| Size/pc | 226x24mm 226x45mm |
|---|---|
| Size/sht (Actual) | 226x297mm |
| Size/sht (Nominal) | 230x300mm |
| Thickness | 9mm, 11mm Mix |
| Joint | Horizontal 3mm Vertical 4mm |
| Quantity/sqm | 14.5shts |
| Quantity/ctn | 14shts |
| Weight/ctn | 19kg |
-

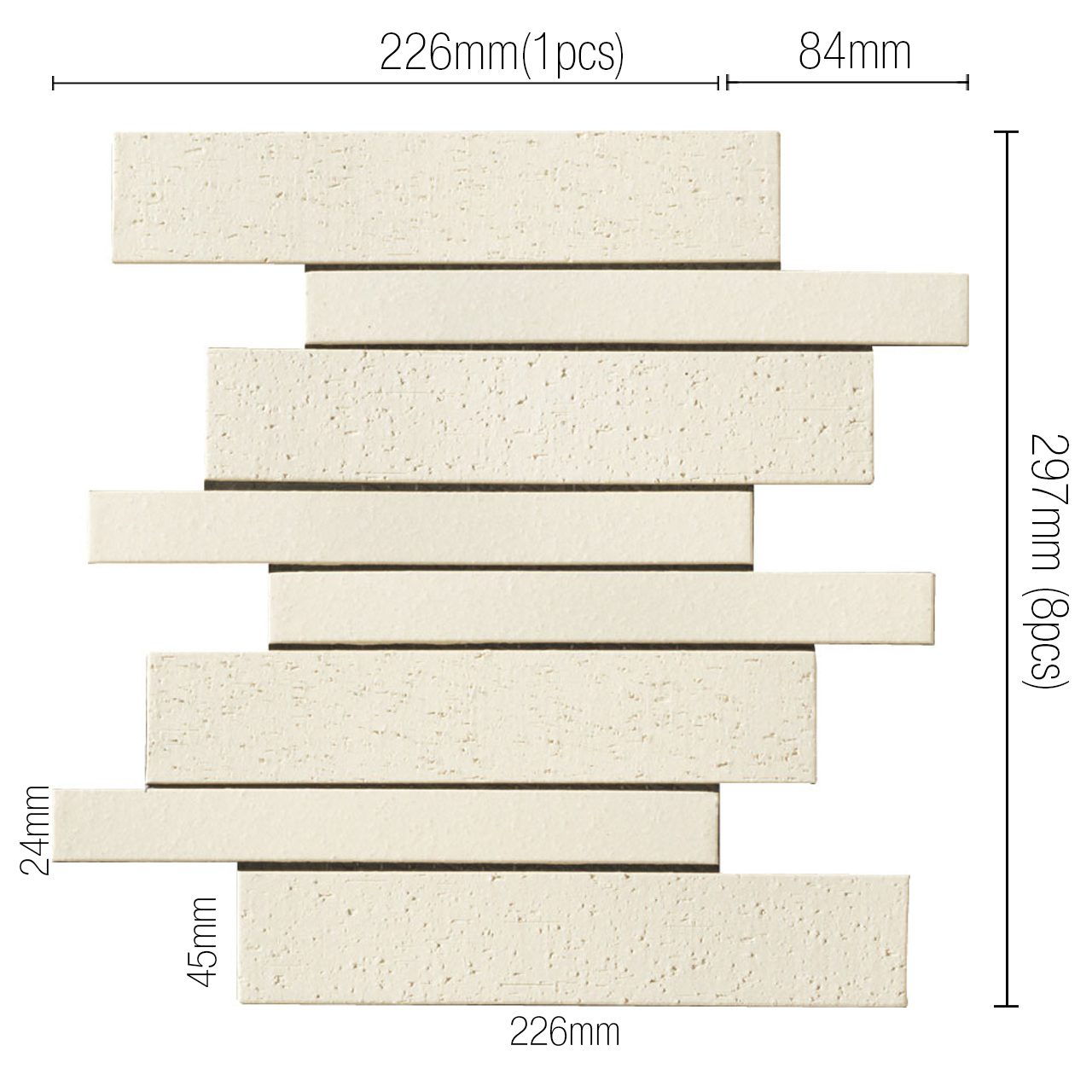

![Dimension of sheet]()
Dimension of sheet

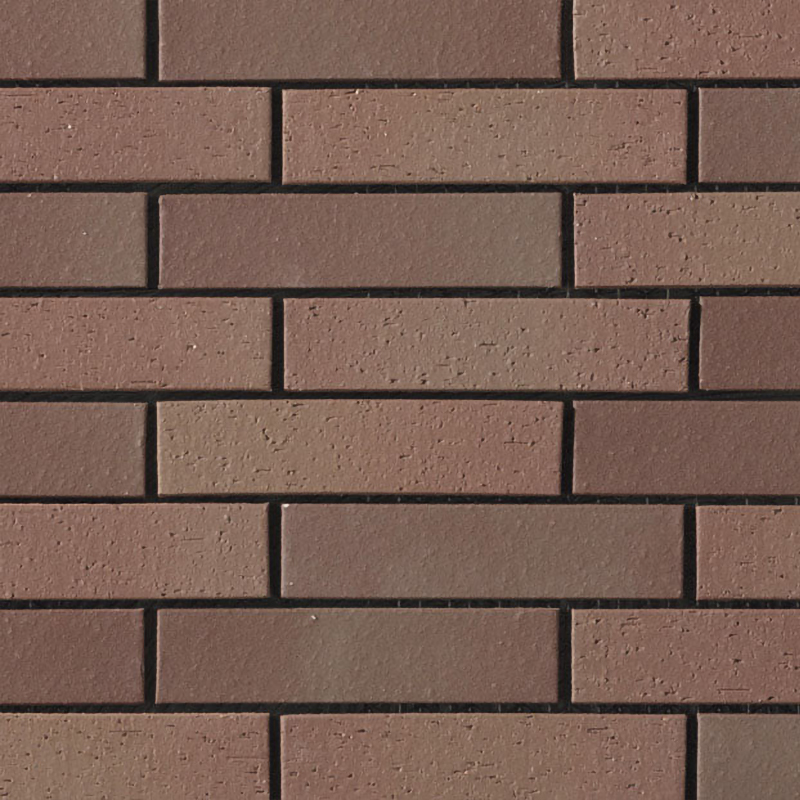

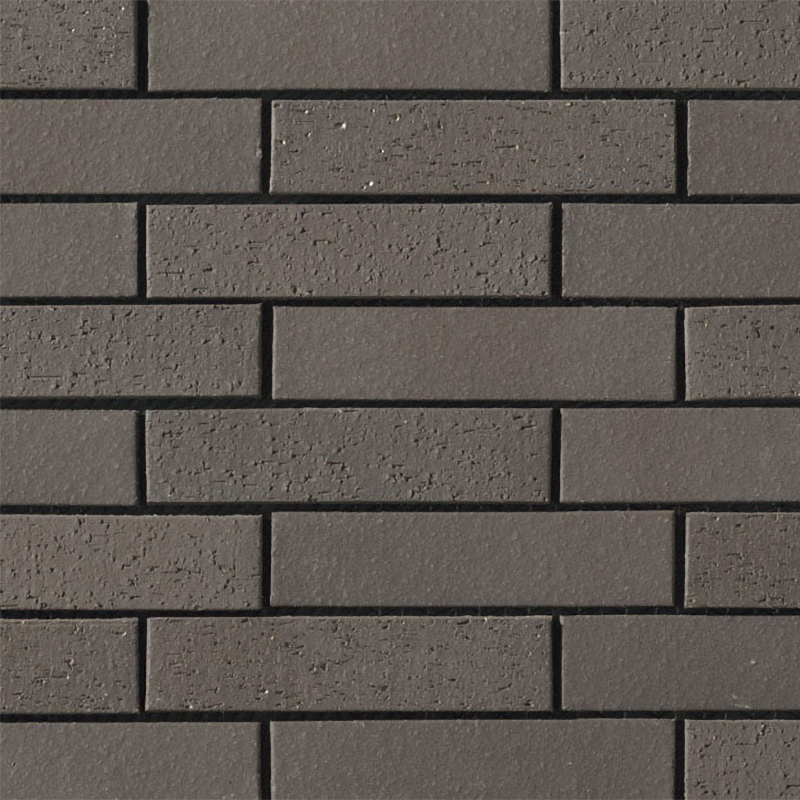

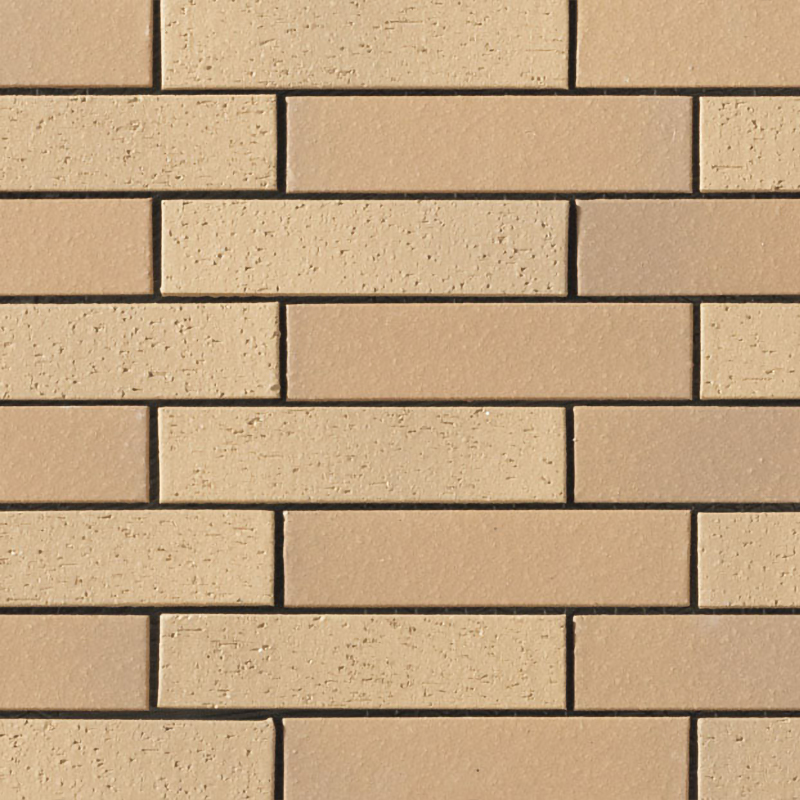

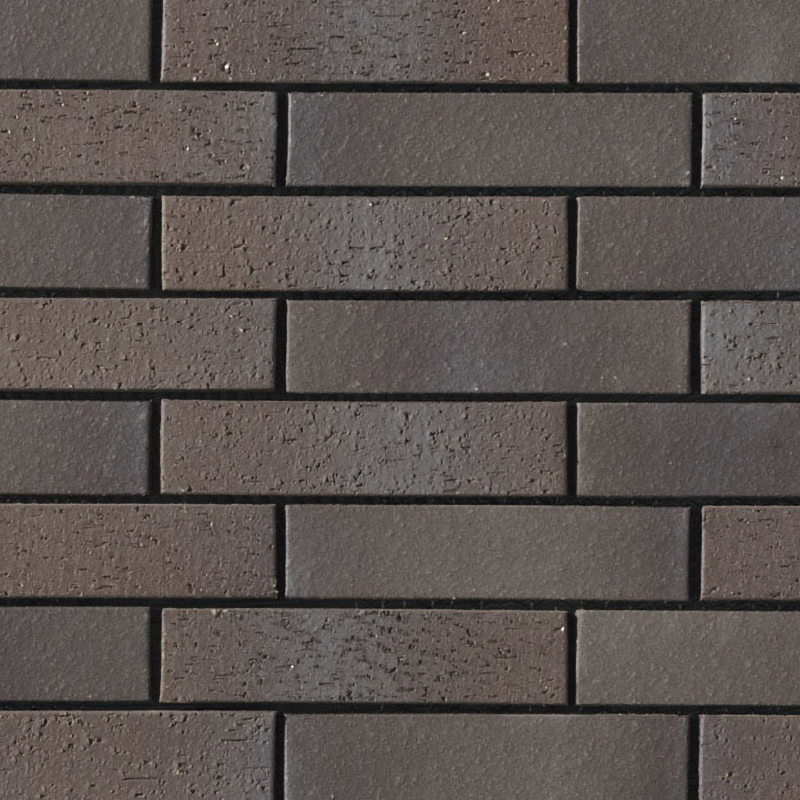

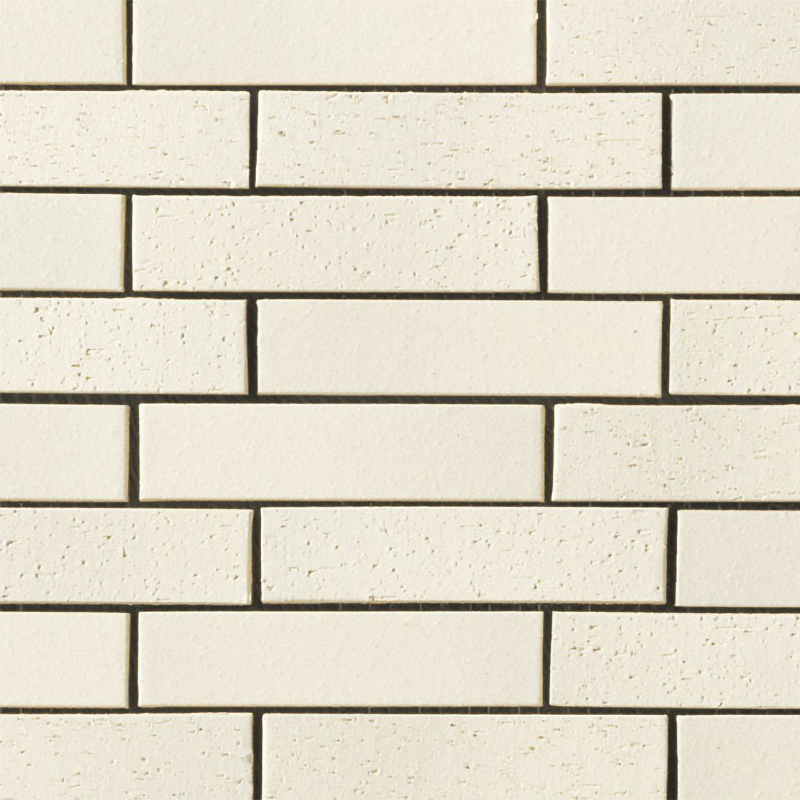

Field tile (Btype) FCY-35B/B1~B7
| Size/pc | 147x34.5mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 8mm, 10mm Mix |
| Joint | 3mm |
| Quantity/sqm | 11.2shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 19.5kg |
-

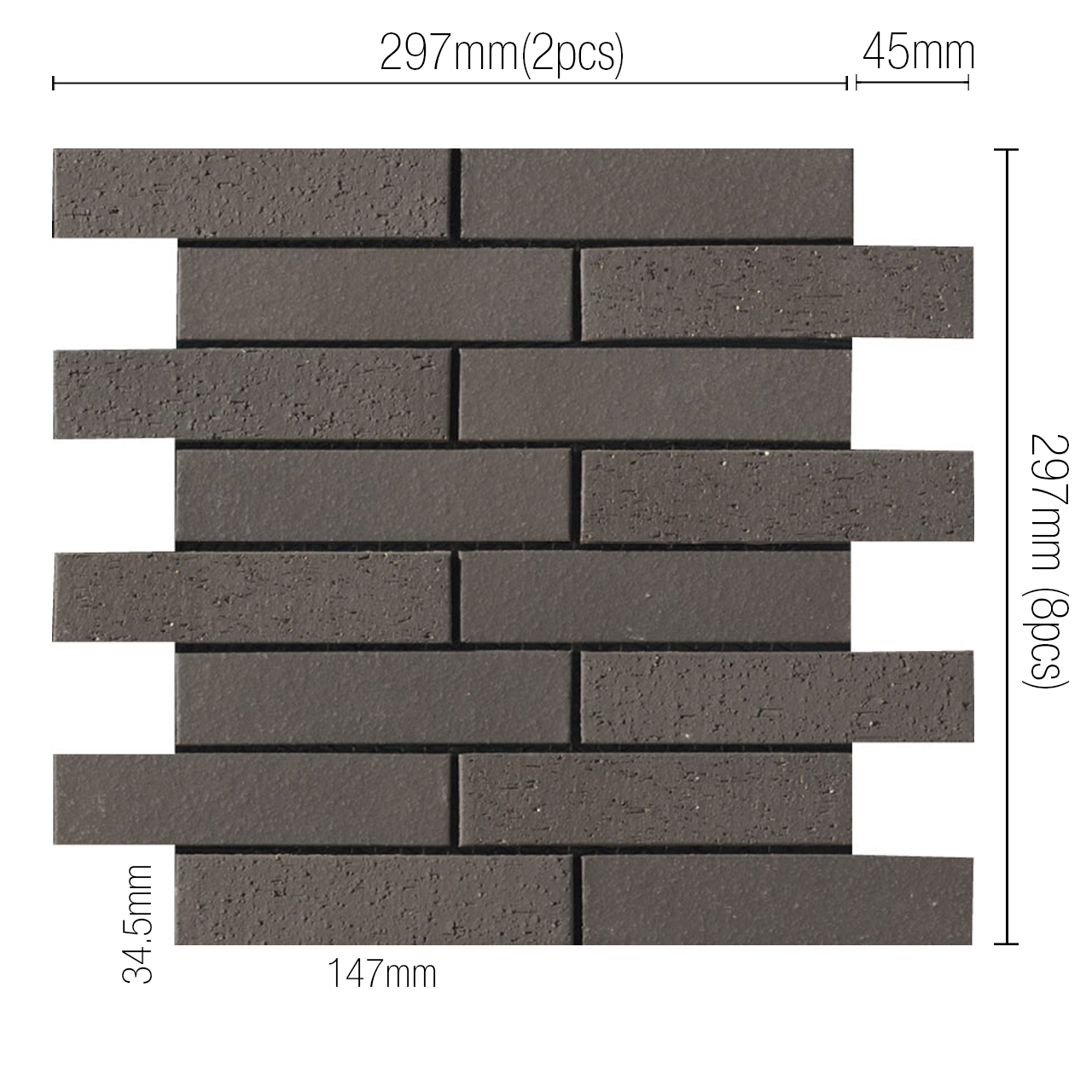

![Dimension of sheet]()
Dimension of sheet
Corner Tile (Atype) FCY-C/A1~A7
| Size/pc | 147x24mm 75x24mm 127x45mm 95x45mm |
|---|---|
| Size/sht (Actual) | 147x297mm |
| Size/sht (Nominal) | 151x300mm |
| Thickness | 9mm, 11mm Mix |
| Joint | Horizontal 3mm Vertical 4mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 28shts |
| Weight/ctn | 19kg |
-

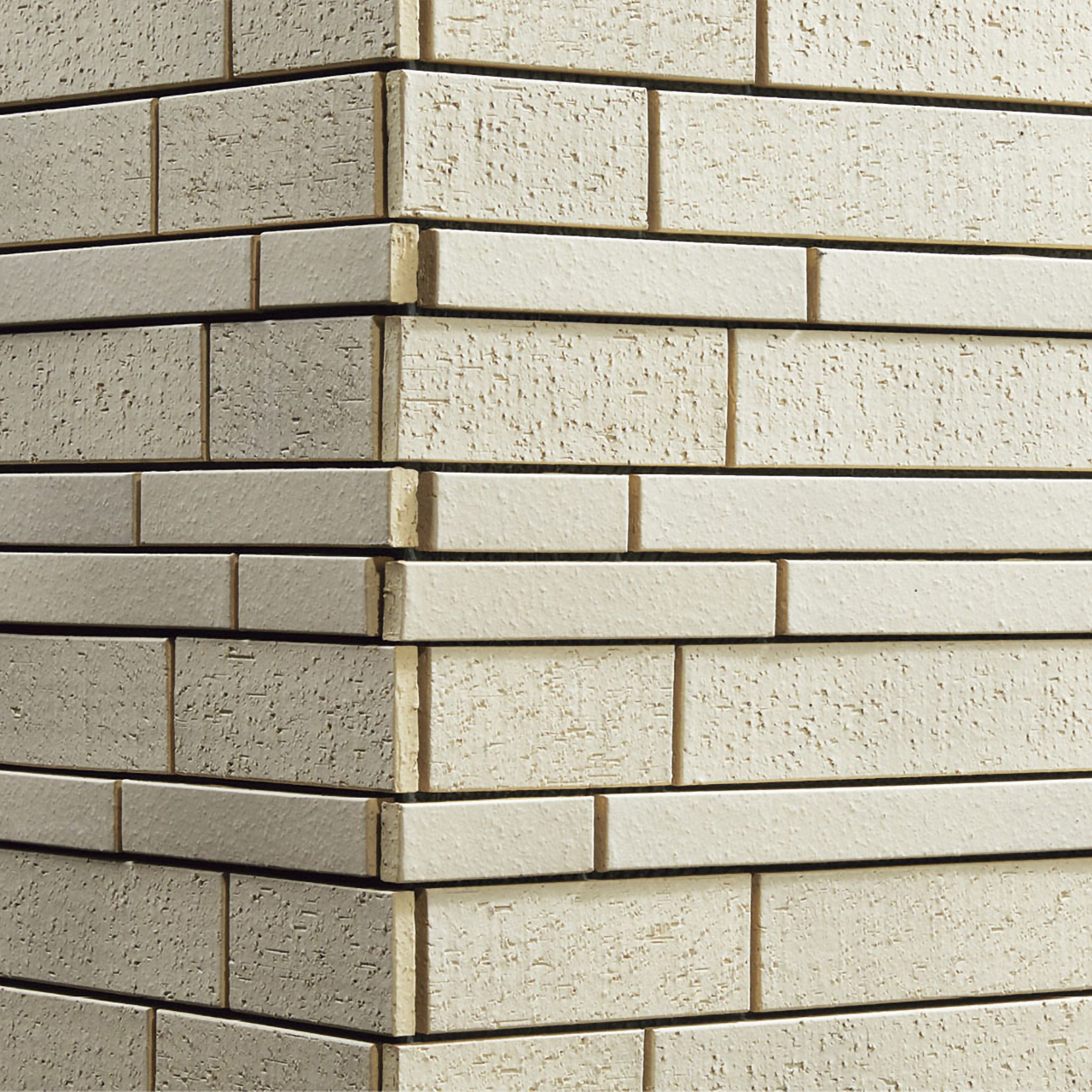

![Installation for corner]()
Installation for corner
Corner Tile (Btype) FCY-C/B1~B7
| Size/pc | 127x34.5mm 91.5x34.5mm |
|---|---|
| Size/sht (Actual) | 127x297mm |
| Size/sht (Nominal) | 130x300mm |
| Thickness | 8mm, 10mm Mix |
| Joint | 3mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 20shts |
| Weight/ctn | 12.5kg |
-

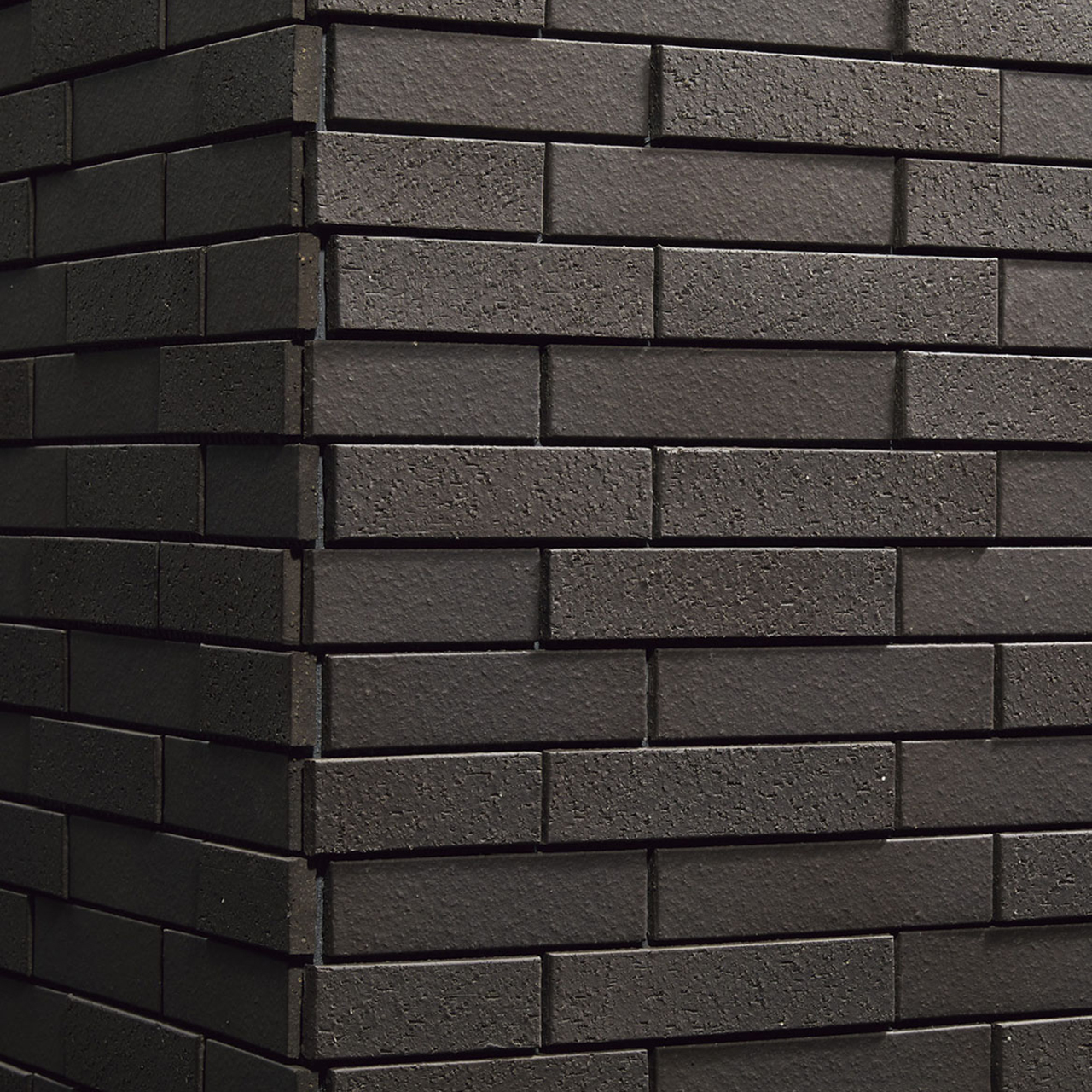

![Installation for corner]()
Installation for corner
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Joint widths may vary even within a sheet.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
