TERRAROSSA
Spec
BII / Unglazed

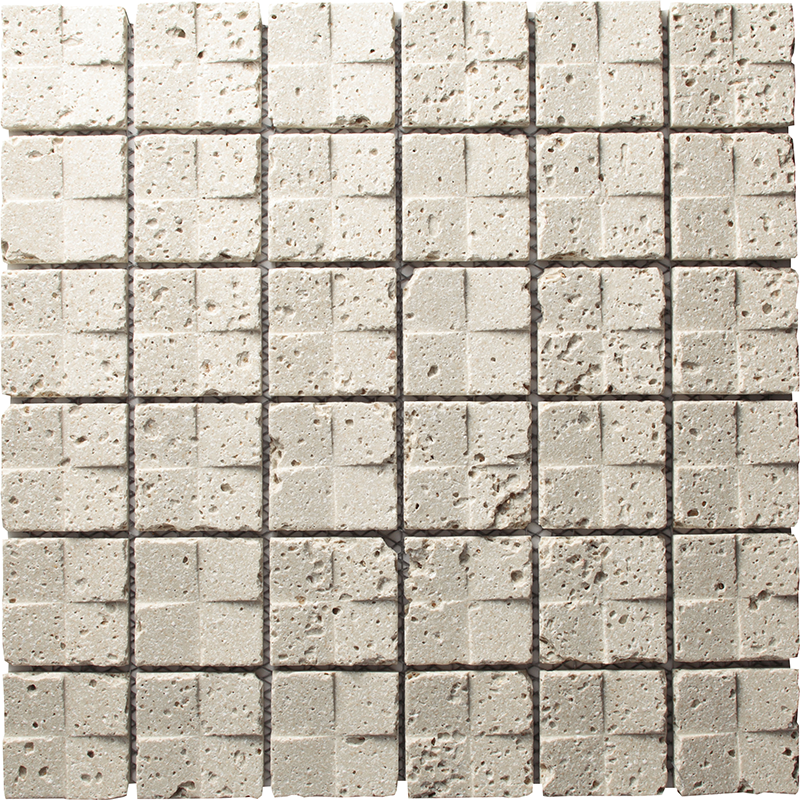

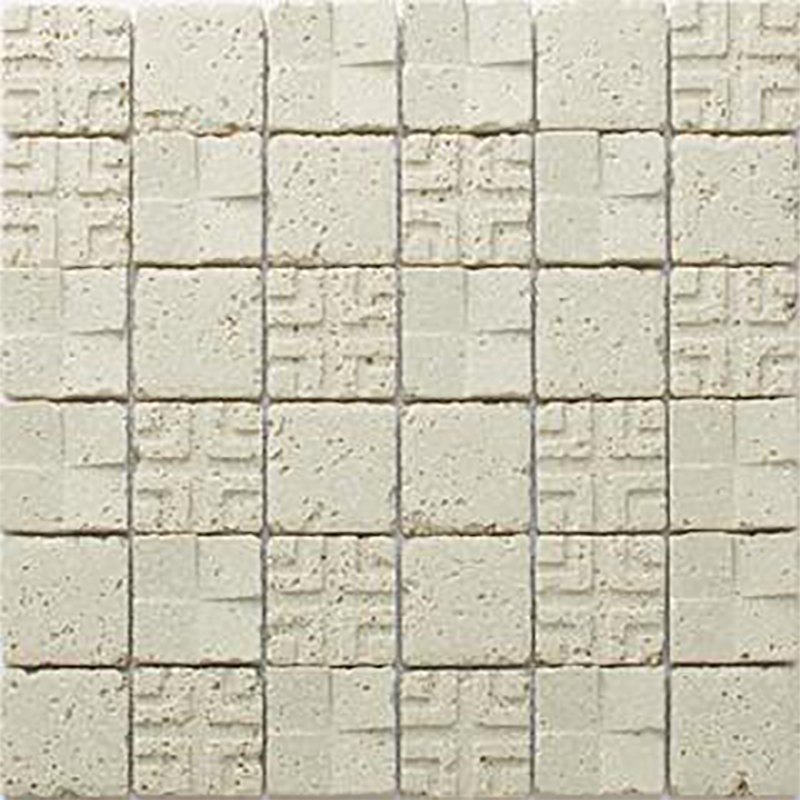

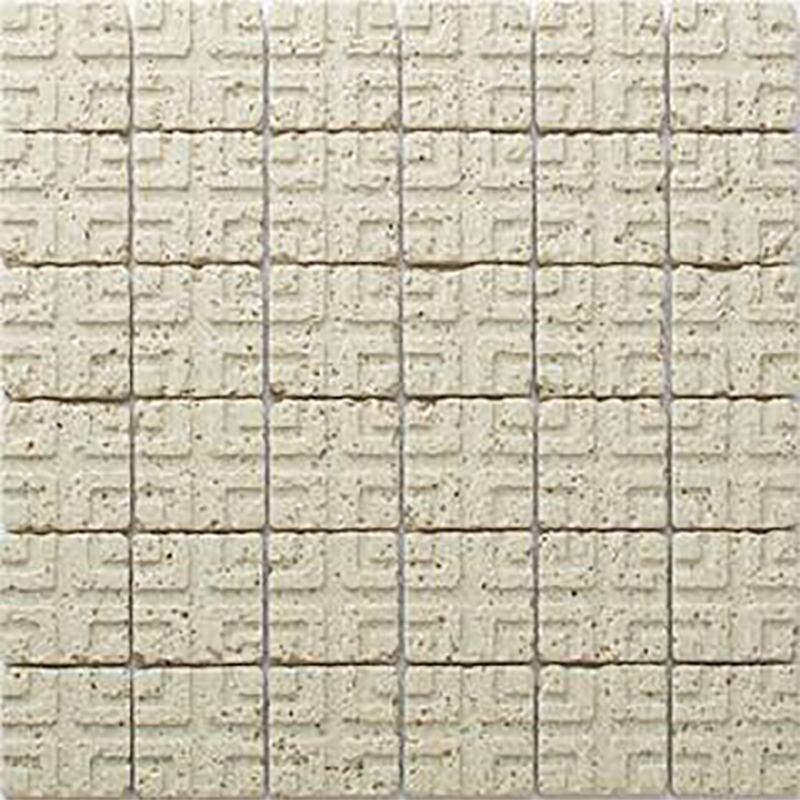

Field Tile DN-155/ROS-1~ROS-14MIX
| Size/pc | 45x45mm |
|---|---|
| Size/sht (Actual) | 280x280mm |
| Size/sht (Nominal) | 282x282mm |
| Thickness | 8.5mm |
| Joint | 2mm |
| Quantity/sqm | 12.6shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 14kg |
-

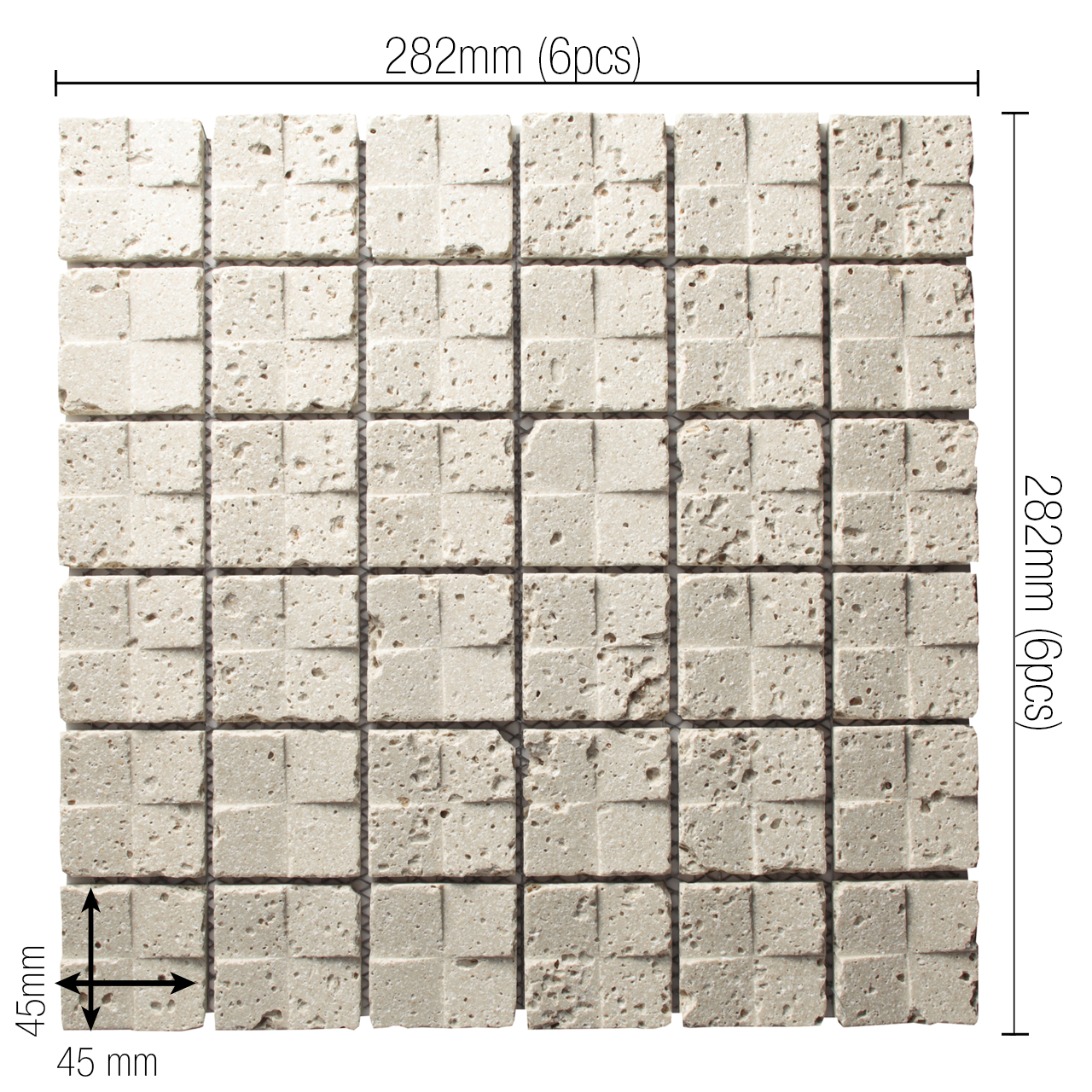

![Dimension of sheet
Mounting : Back net]()
Dimension of sheet
Mounting : Back net

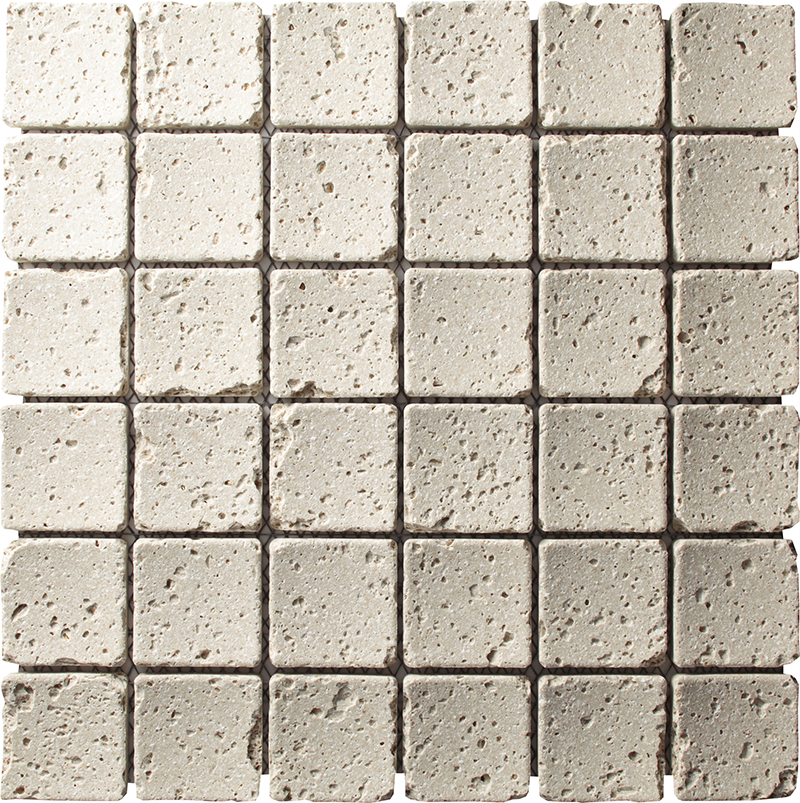

Field Tile DN-48/ROS-2
| Size/pc | 48x48mm |
|---|---|
| Size/sht (Actual) | 298x298mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 10mm |
| Joint | 2mm |
| Quantity/sqm | 11.1shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 17kg |
-

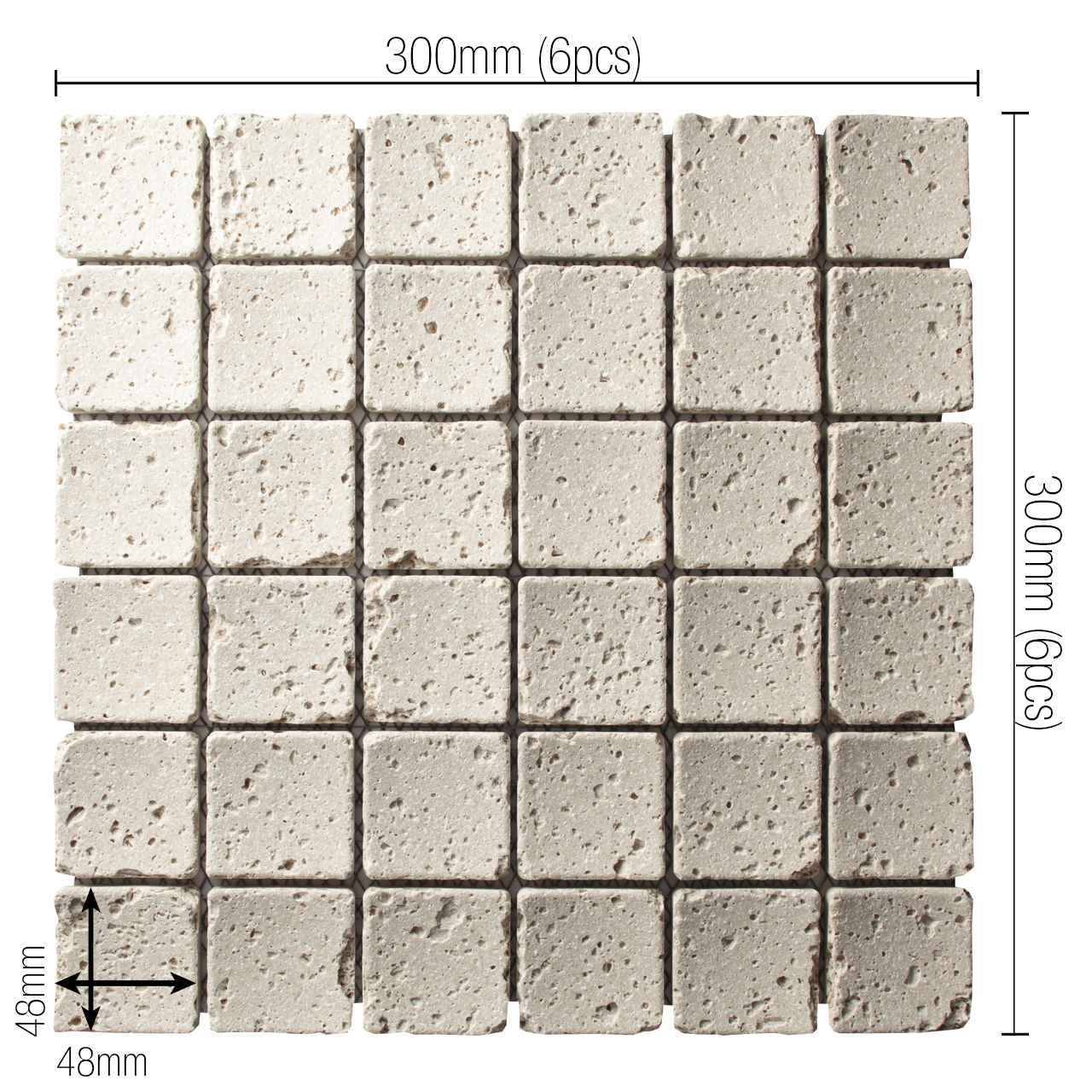

![Dimension of sheet
Mounting : Back net]()
Dimension of sheet
Mounting : Back net
Installation Material
Adhesive o
Mortar ×
Grouting o*
*also, can be not-grouted for design preference
Note:
As part of Terrarossa's design concept, excess grout will remain on tile surface.
White net may be visible from between joints in case of not-grouting.
Size of DN-155/ROS-1~ROS-14MIX and DN-48/ROS-2 is different.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
