CELAVIO E
Spec
BI / Glazed

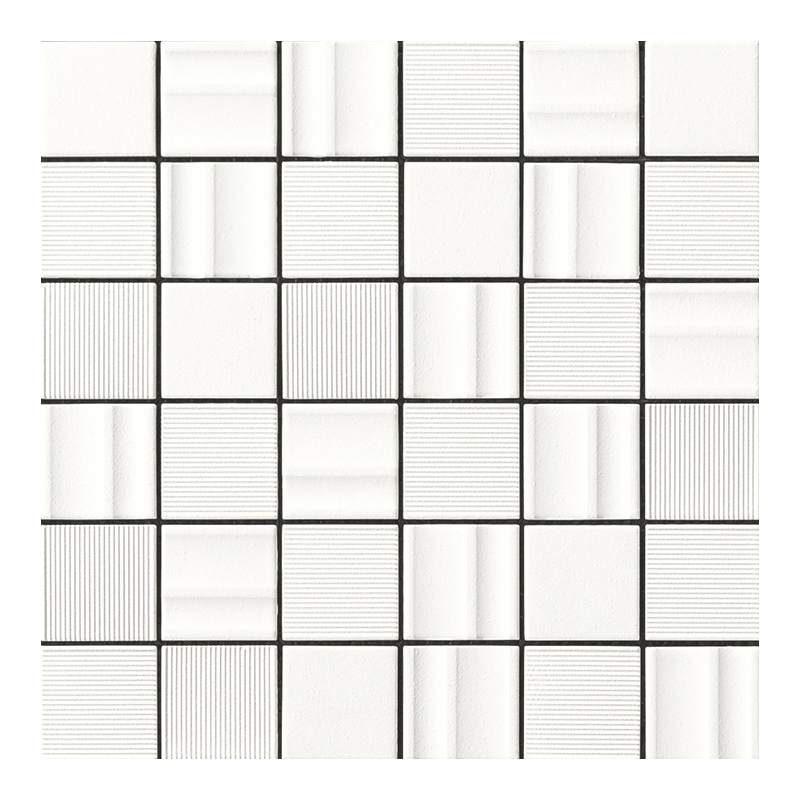

Field Tile HAL-155/CEF-1~CEF-2
| Size/pc | 47x47mm |
|---|---|
| Size/sht (Actual) | 300x300mm |
| Size/sht (Nominal) | 297x297mm |
| Thickness | 7.5mm |
| Joint | 3mm |
| Quantity/sqm | 11.2shts |
| Quantity/ctn | 15shts |
| Weight/ctn | 18.9kg |
-
![Dimension of sheet]()

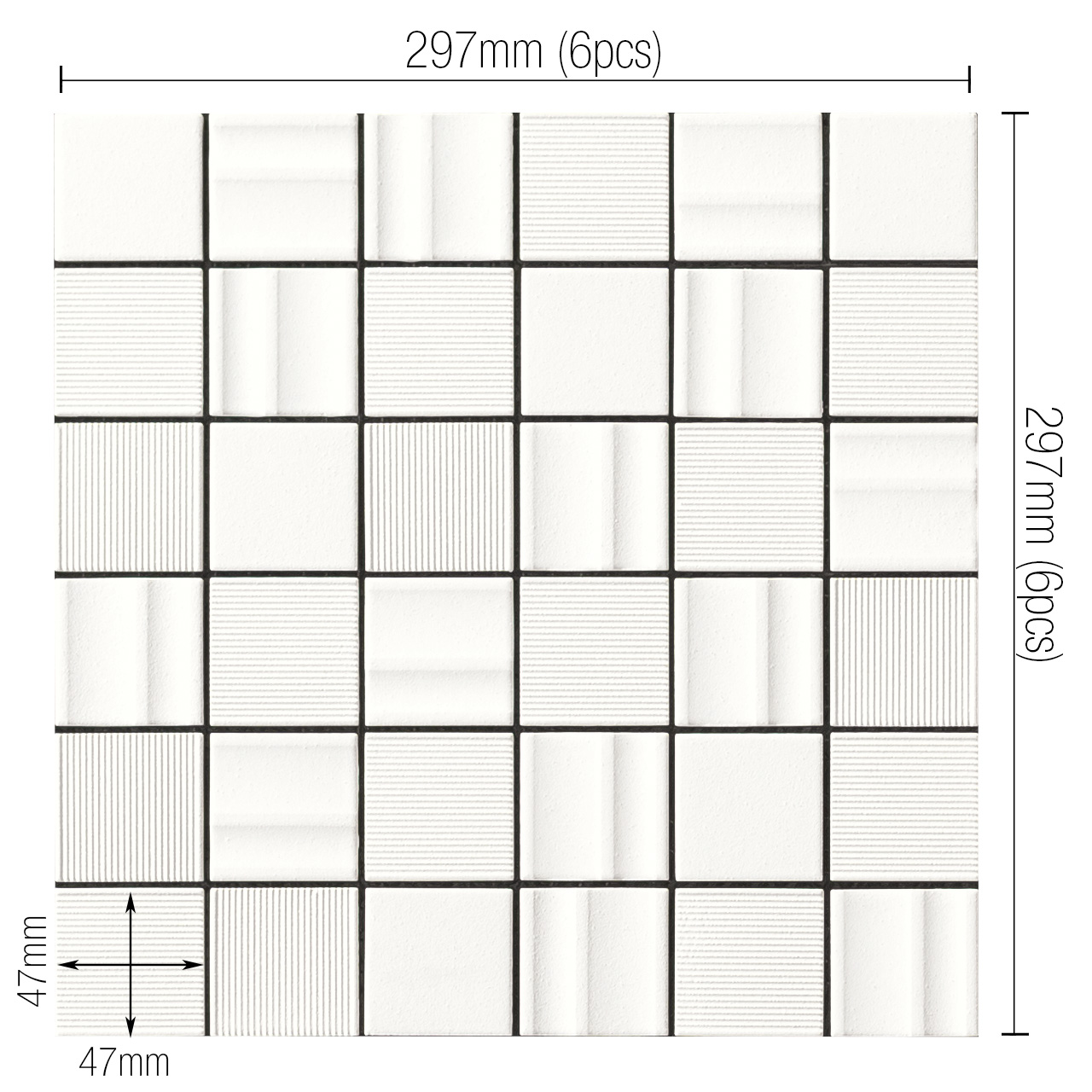

Dimension of sheet -
![Dimension of piece
( 3 patterns mix )]()

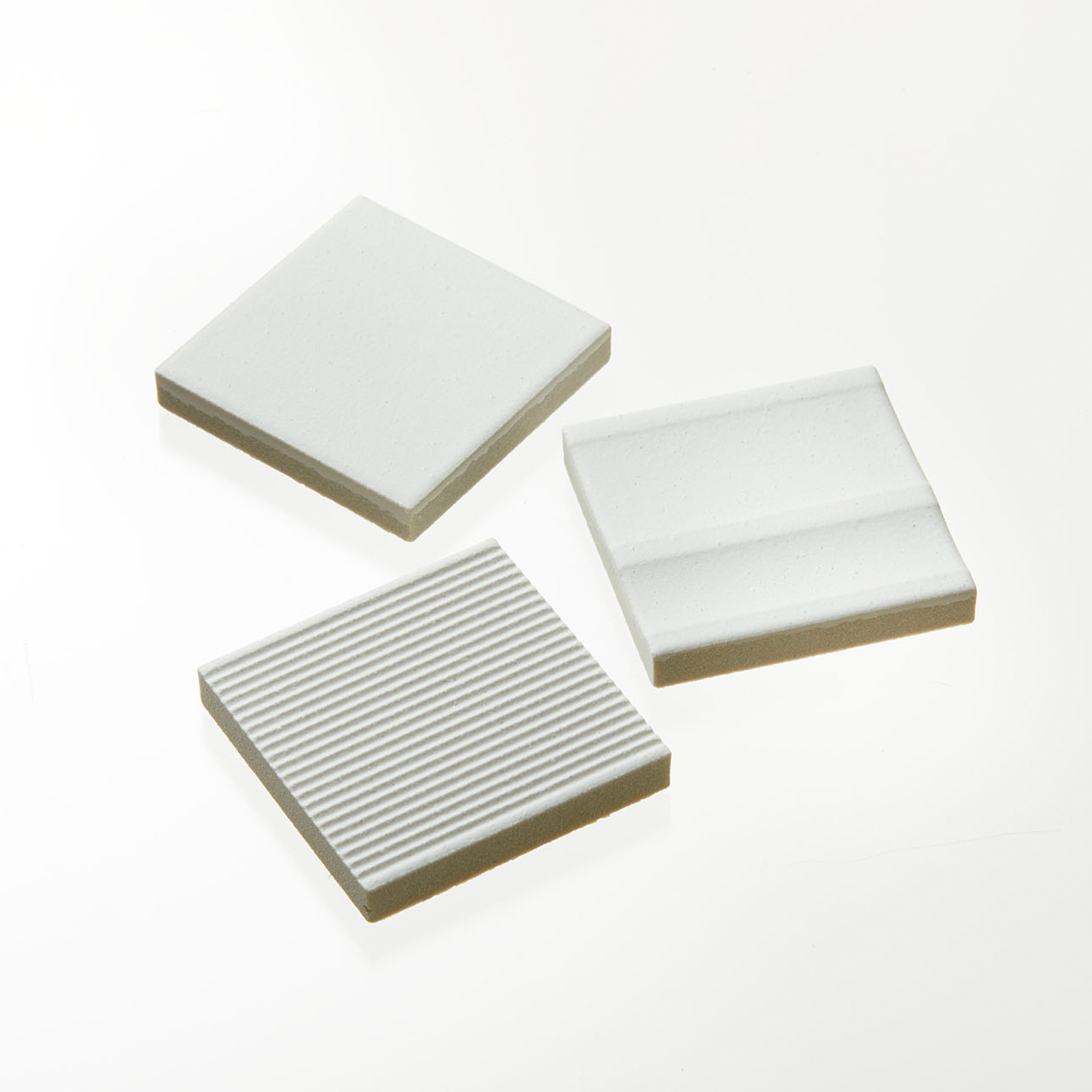

Dimension of piece
( 3 patterns mix ) -
![Mounting : Back net]()

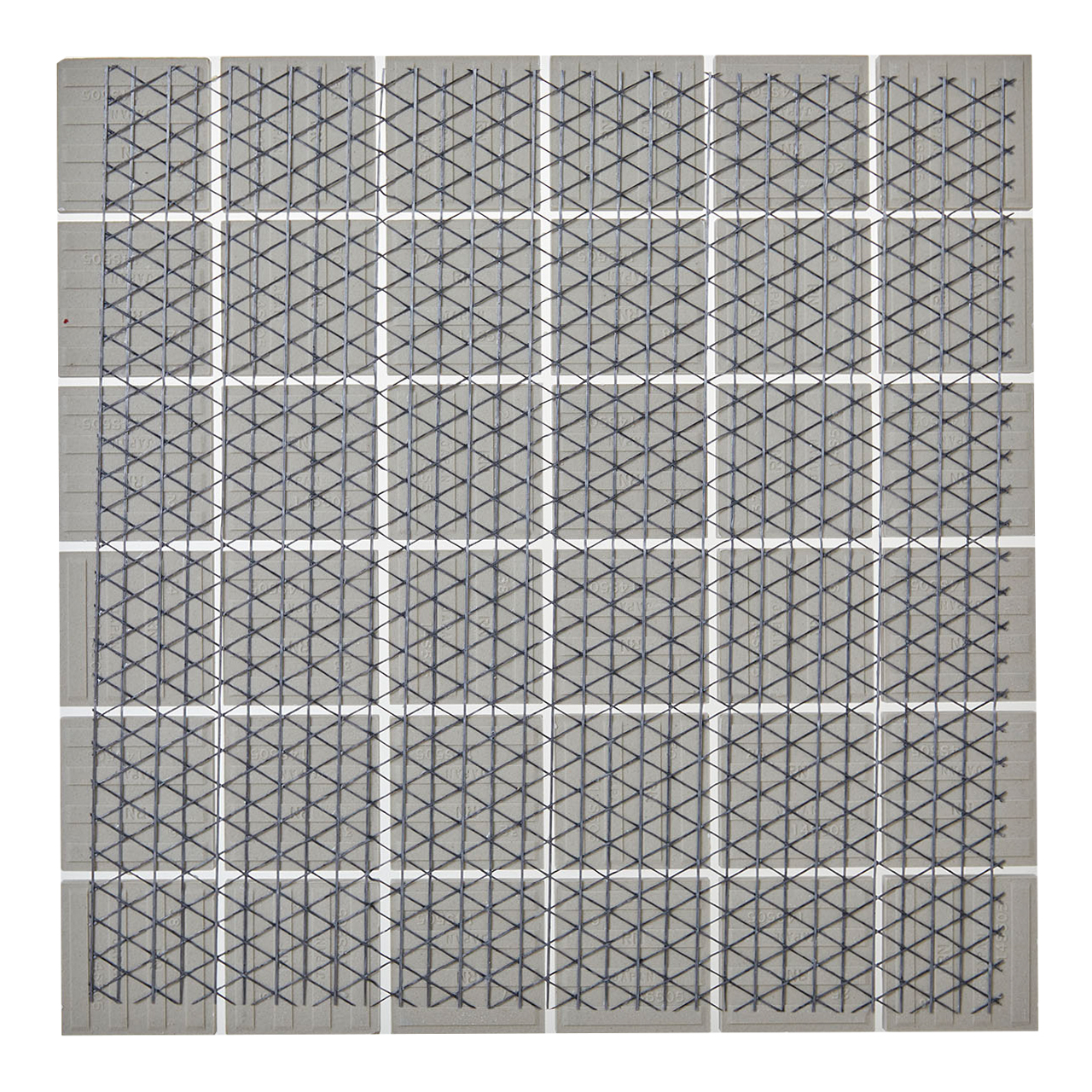

Mounting : Back net
Corner Tile HAL-C/CEF-1~CEF-2
| Size/pc | 47x47mm 38x47mm |
|---|---|
| Size/sht (Actual) | 47x297mm |
| Size/sht (Nominal) | 50x300mm |
| Thickness | 7.5mm |
| Joint | 3mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 20shts |
| Weight/ctn | 3.8kg |
-
![Dimension of sheet]()

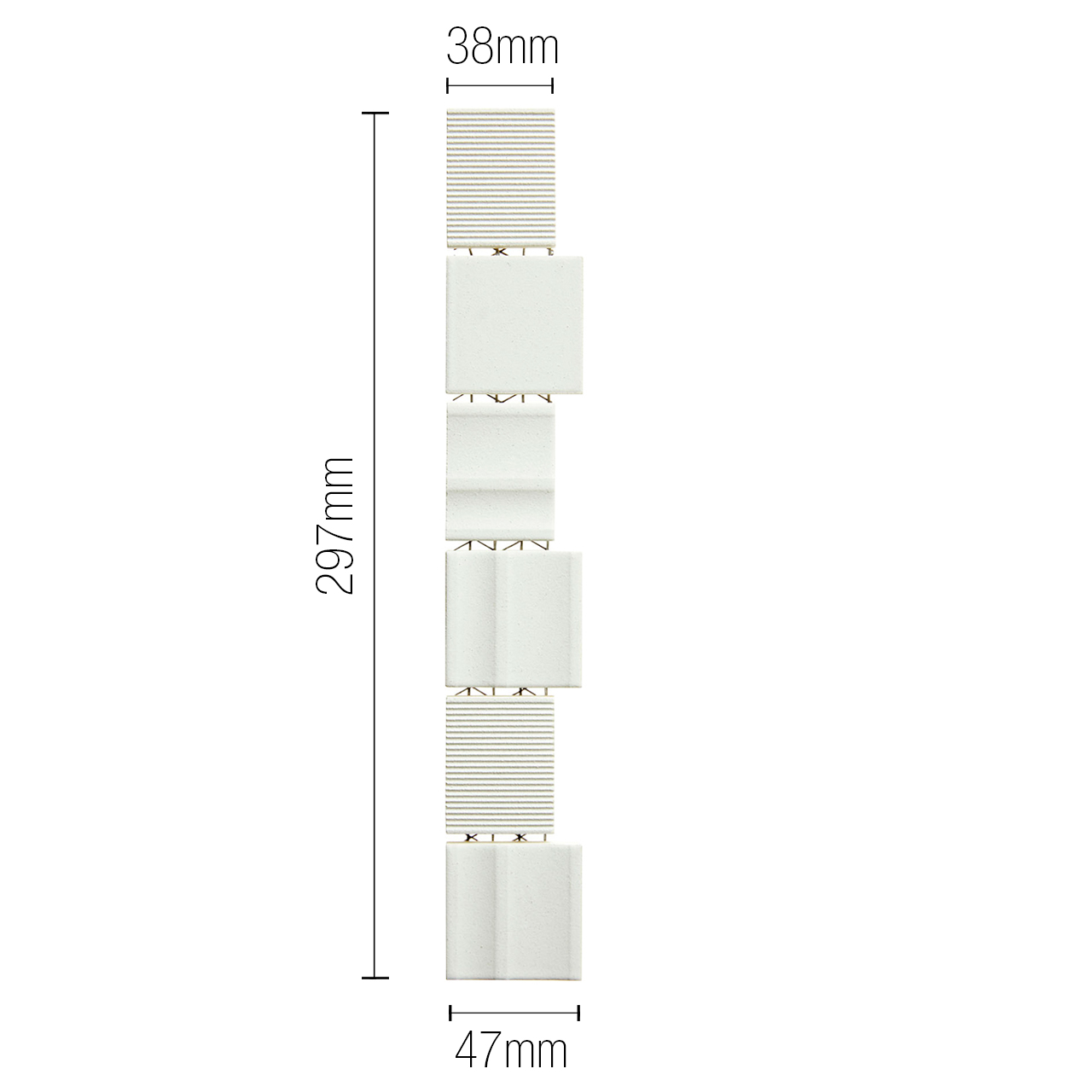

Dimension of sheet -

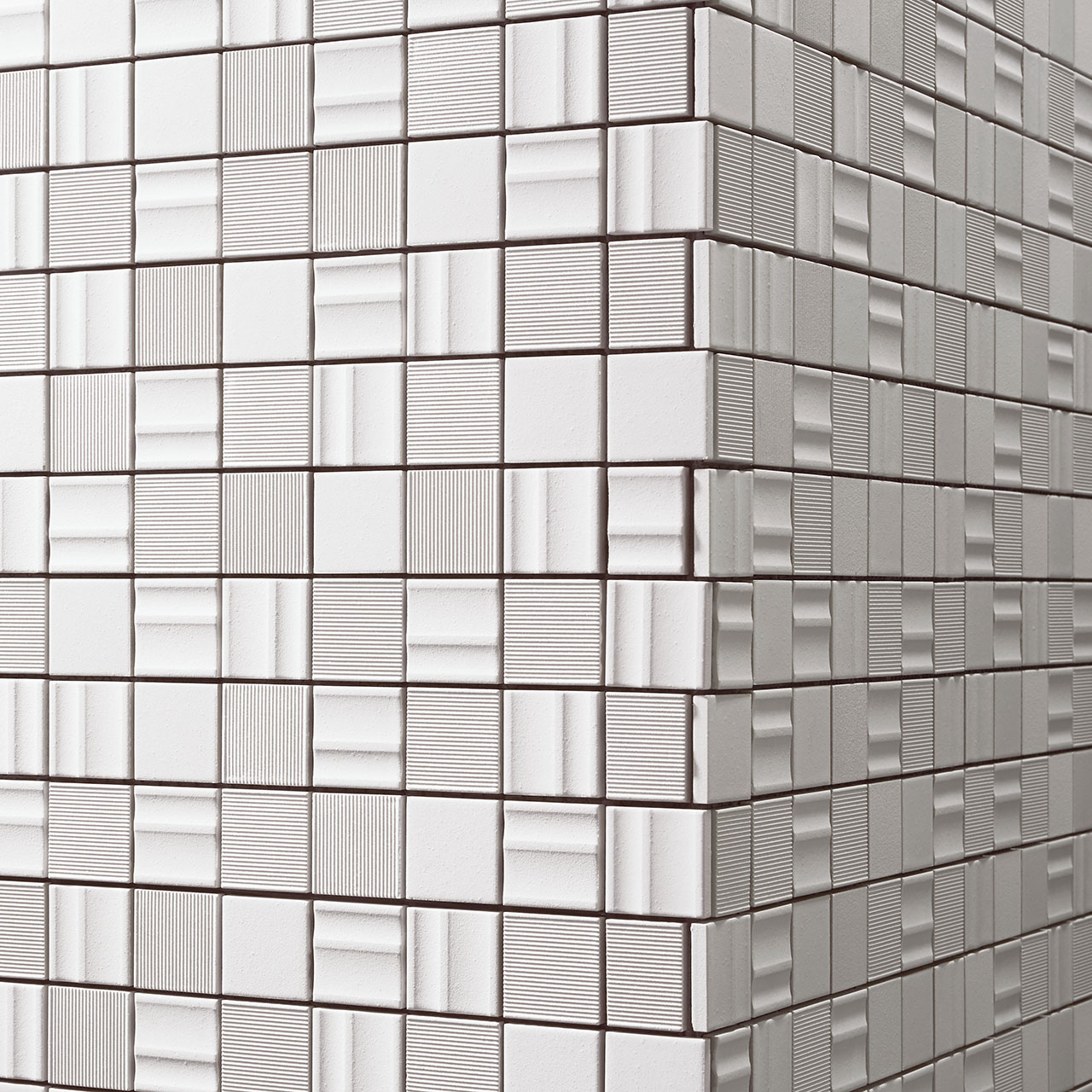

![Installation for corner]()
Installation for corner
Installation Material
Adhesive ○
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Joint widths may vary even within a sheet.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
