ARC
Spec
BI / Glazed (AC-2)
BII /Unglazed (ROS-6)
Field Tile DN-2448/AC-2, ROS-6
| Size/pc | 23x48mm |
|---|---|
| Size/sht (Actual) | 298x298mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 10mm |
| Joint | 2mm |
| Quantity/sqm | 11.1shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 19kg |
-
![Dimension of sheet
Mounting : Back net]()

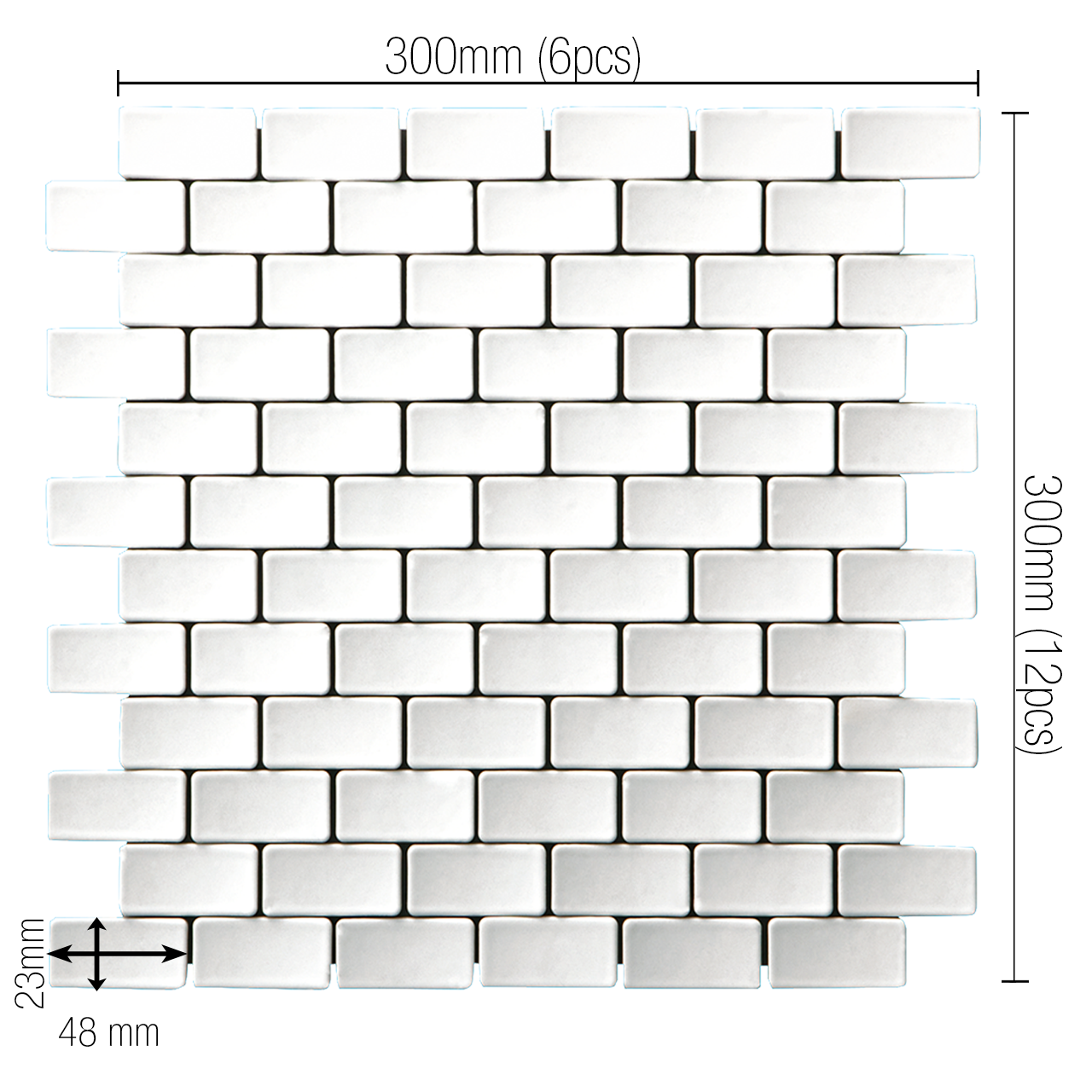

Dimension of sheet
Mounting : Back net
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
White net may be visible from between joints.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
