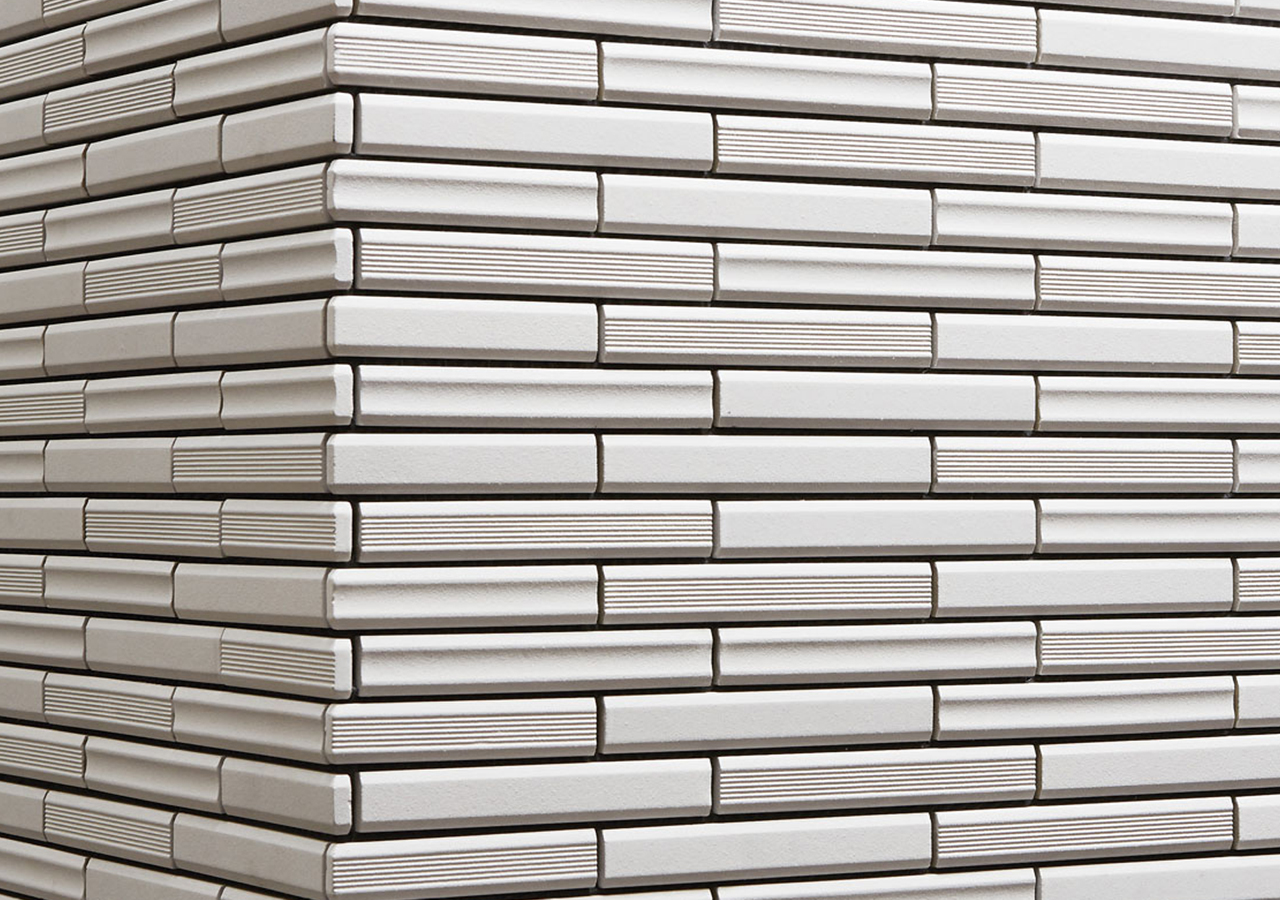

CELAVIO K
Spec
BI / Glazed

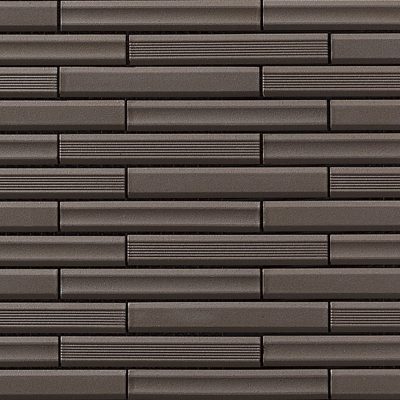

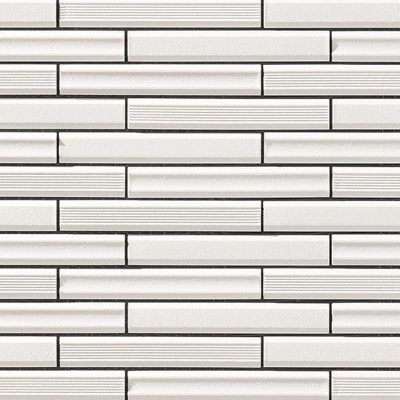

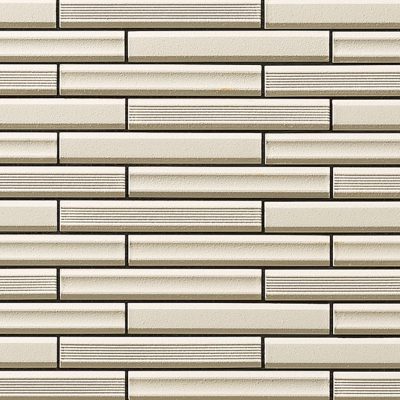

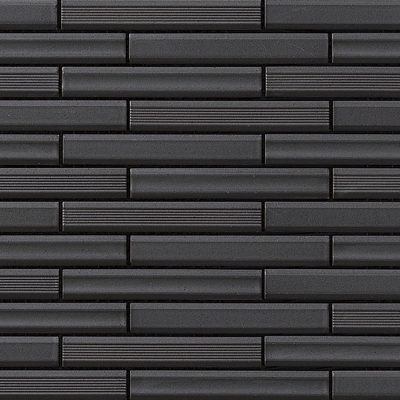

Field tile HAL-25B/CKS-1~CKS-4
| Size/pc | 147x22mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 8mm |
| Joint | 3mm |
| Quantity/sqm | 11.2shts |
| Quantity/ctn | 15shts |
| Weight/ctn | 19kg |
-

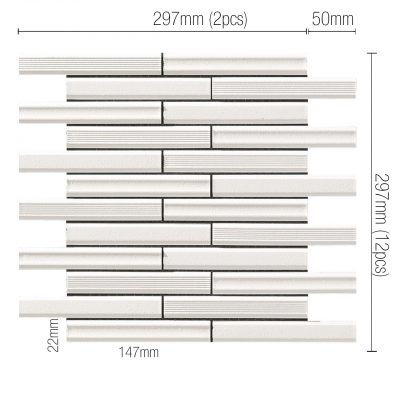

![Dimension of sheet]()
Dimension of sheet
Corner Tile HAL-C/CKS-1~CKS-4
| Size/pc | 147x22mm 108x22mm |
|---|---|
| Size/sht (Actual) | 147x297mm |
| Size/sht (Nominal) | 150x300mm |
| Thickness | 8mm |
| Joint | 3mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 20shts |
| Weight/ctn | 11kg |
-

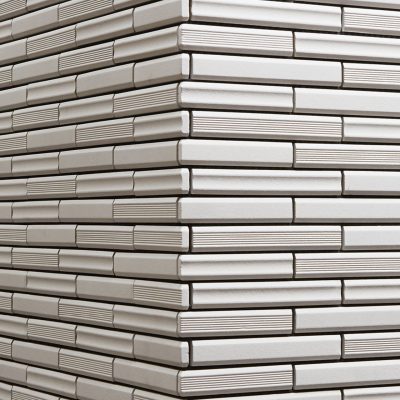

![Installation for corner]()
Installation for corner
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Joint widths may vary even within a sheet.
Colors may vary even within the same batch.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
