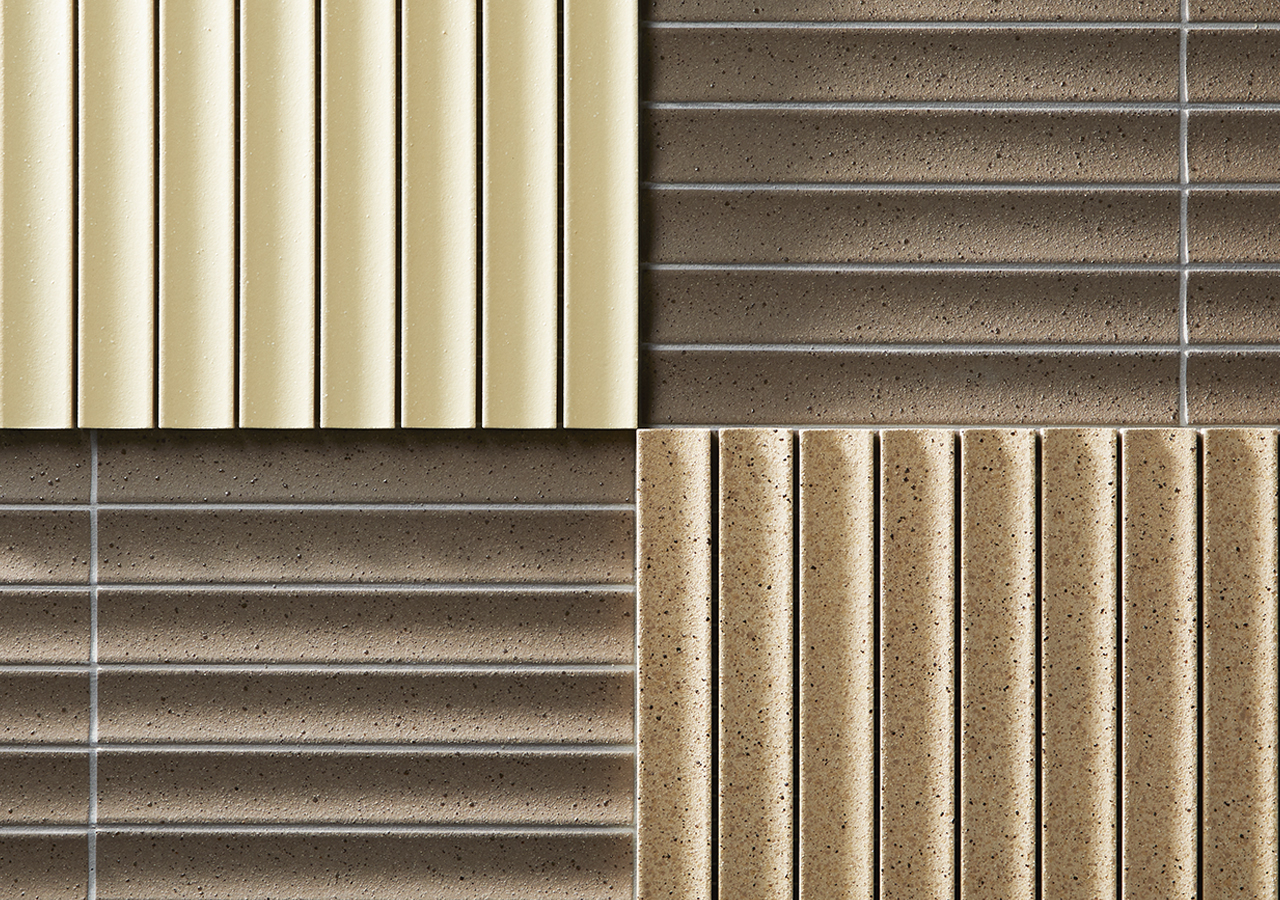

TSUCHIORI (2025 NEW)
Spec
BI / Glazed / CE

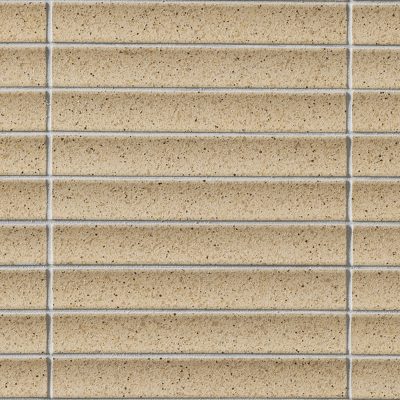

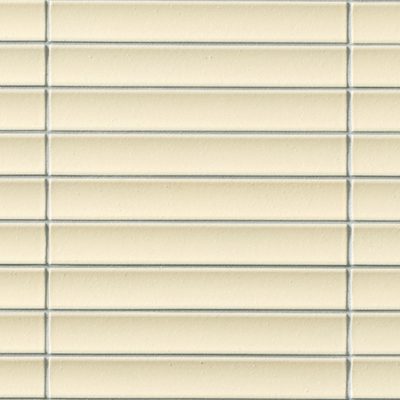

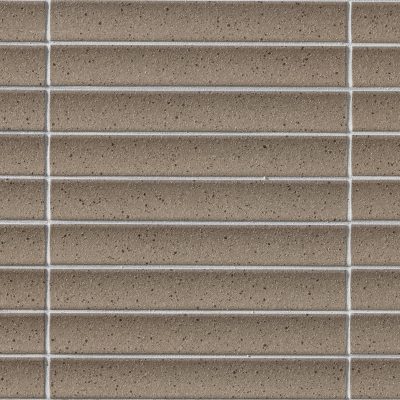

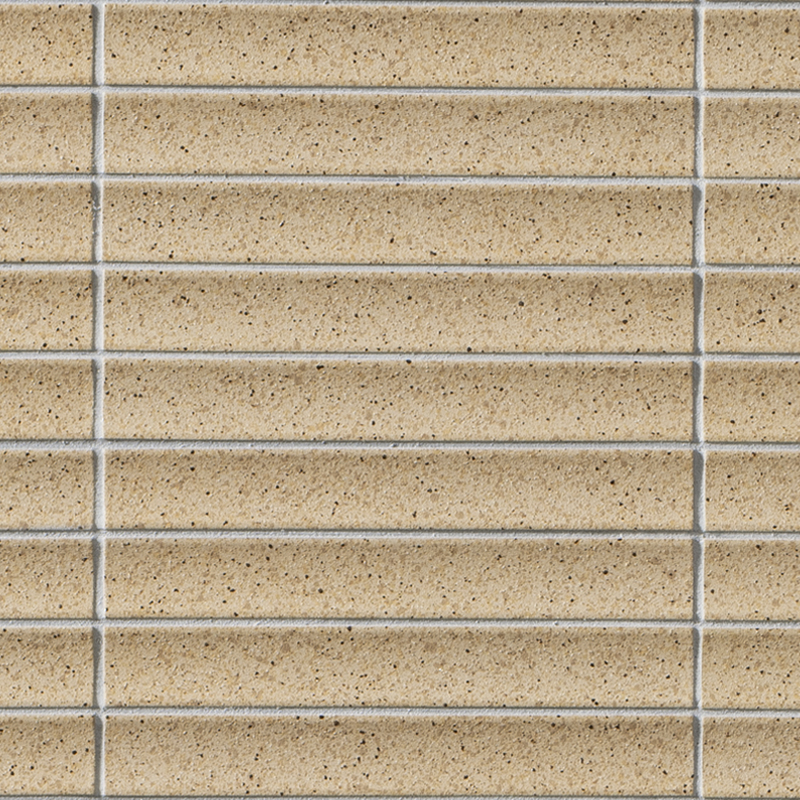

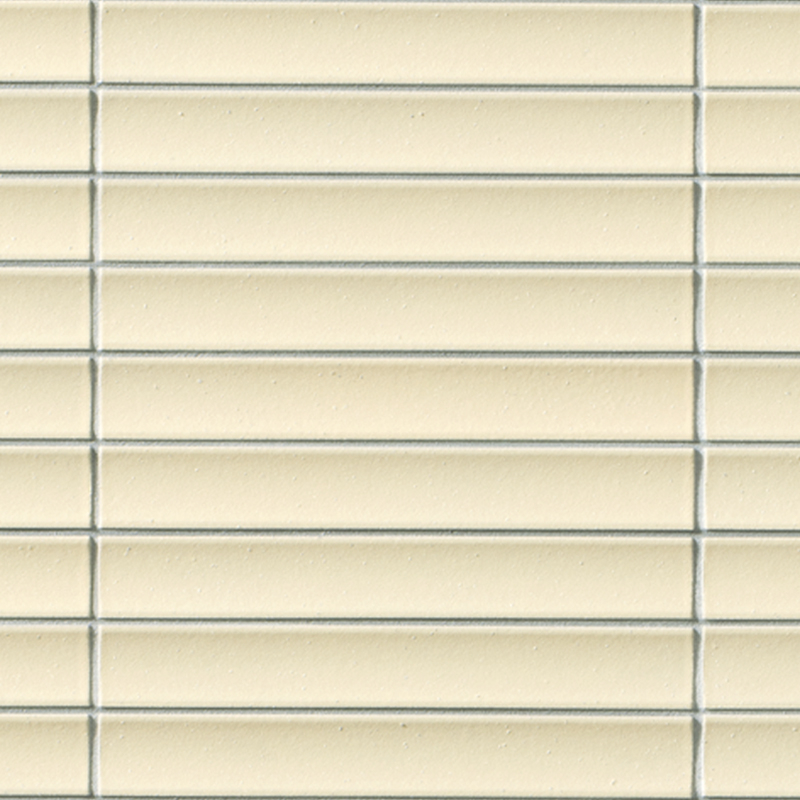

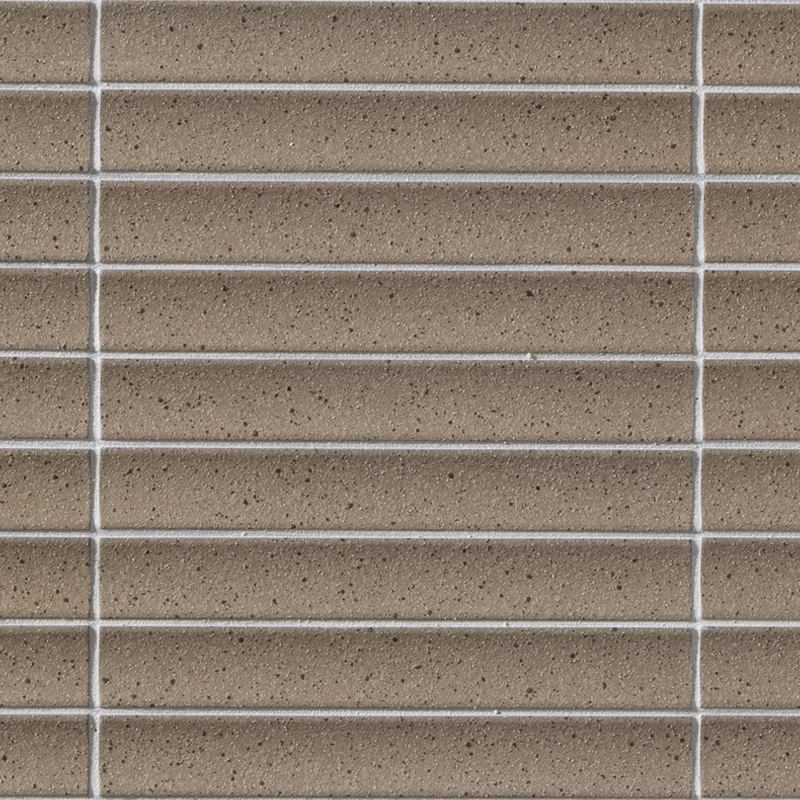

Field Tile IM-2330/TCH-1～TCH-3
| Size/pc | 220×30mm |
|---|---|
| Size/sht (Actual) | 220x294mm |
| Size/sht (Nominal) | 225×297mm |
| Thickness | 9mm |
| Joint | Horizontal 3mm Vertical 5mm |
| Quantity/sqm | 15shts |
| Quantity/ctn | 15shts |
| Weight/ctn | 18kg |
-
![Dimension of sheet]()

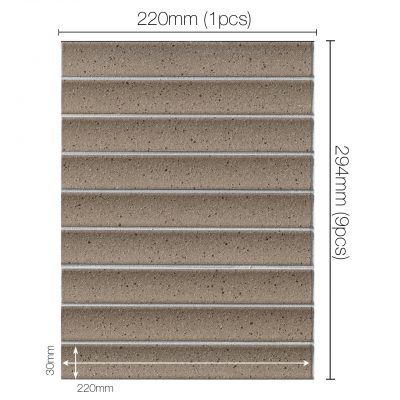

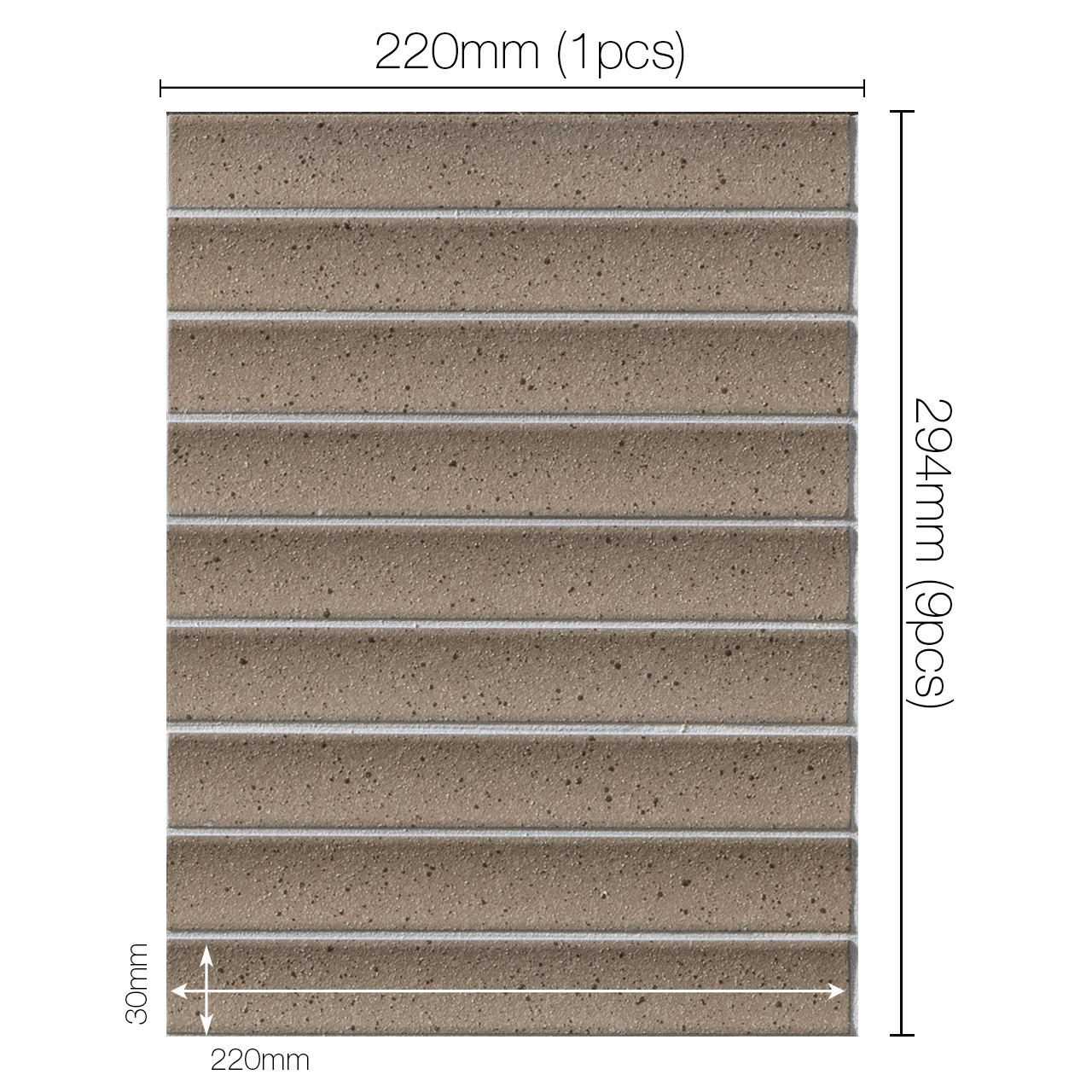

Dimension of sheet -
![Mounting : Back net]()

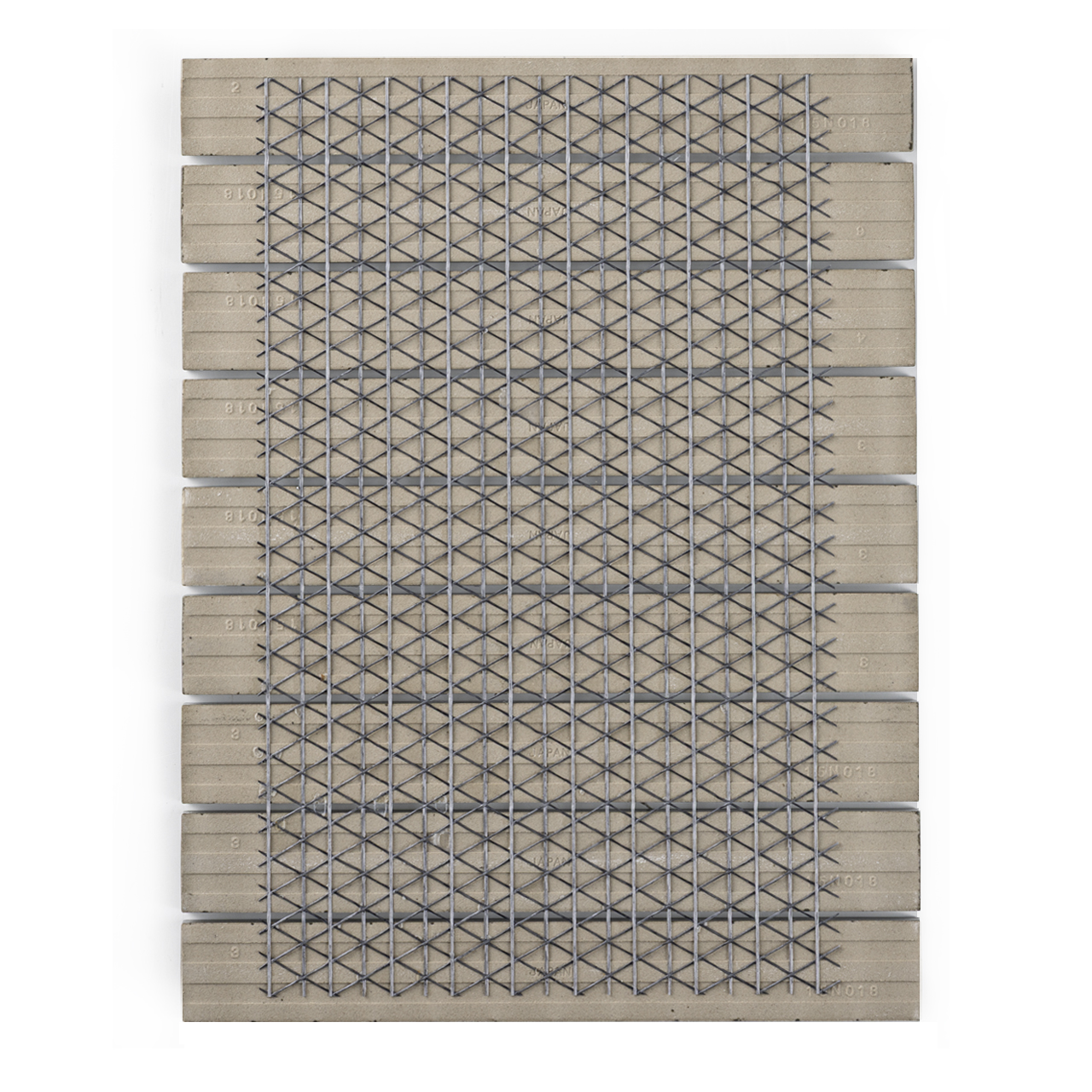

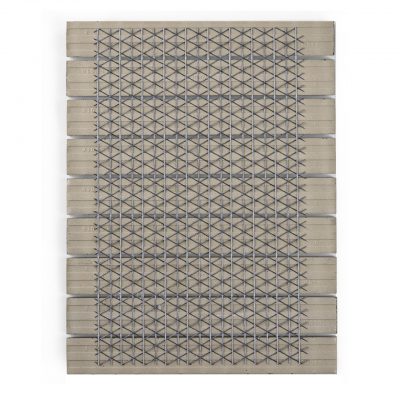

Mounting : Back net -
![Technical Data
PDF file
Click image]()
Technical Data
PDF file
Click image
Installation Material
Adhesive o
Mortar ×
Grouting o
Note:
Color difference may occur between samples and acutual batch.
Has big color variation.
When using dark-colored grout on color number TCH-1, slight grout may remain on the tile surface. Please test it beforehand in an inconspicuous place.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
