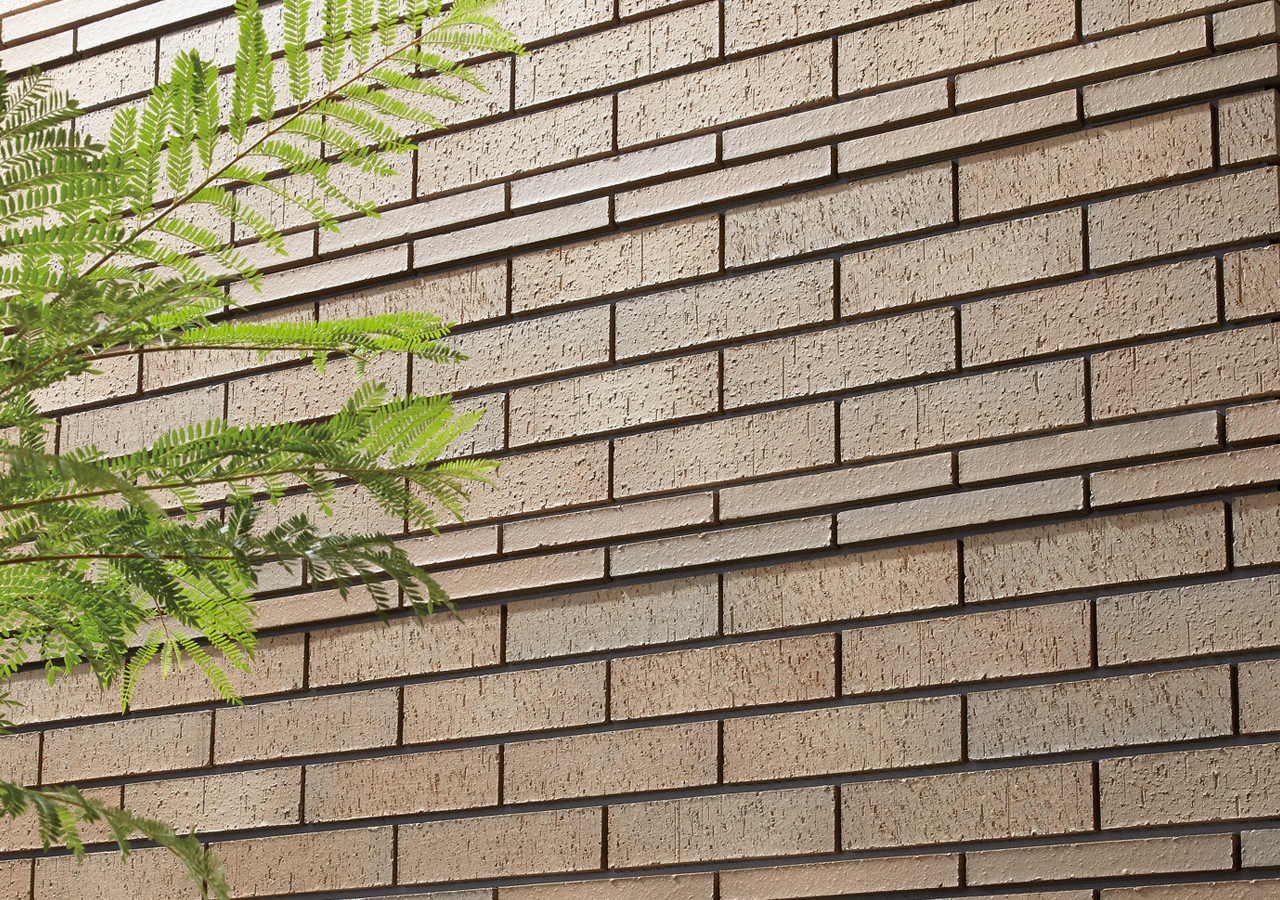

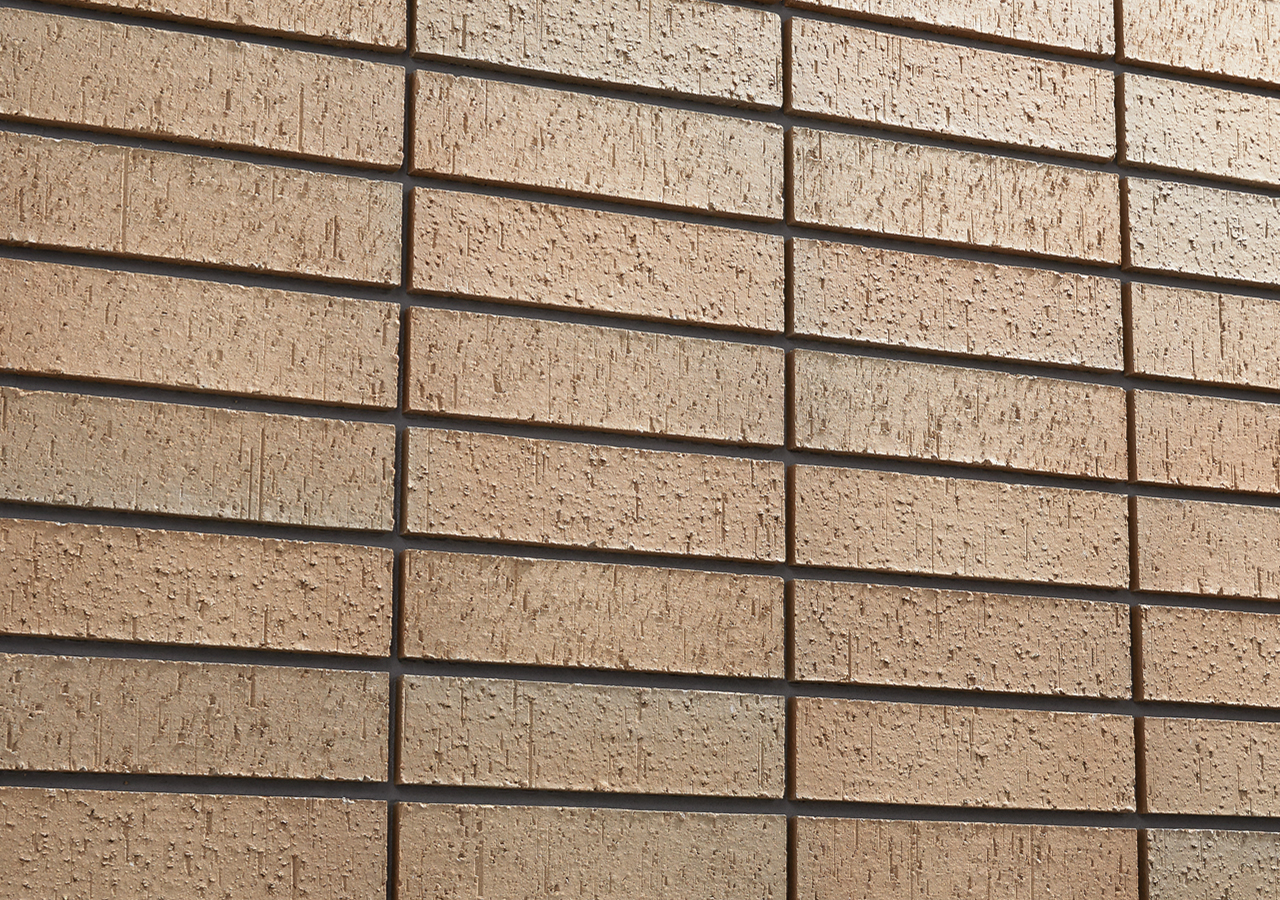

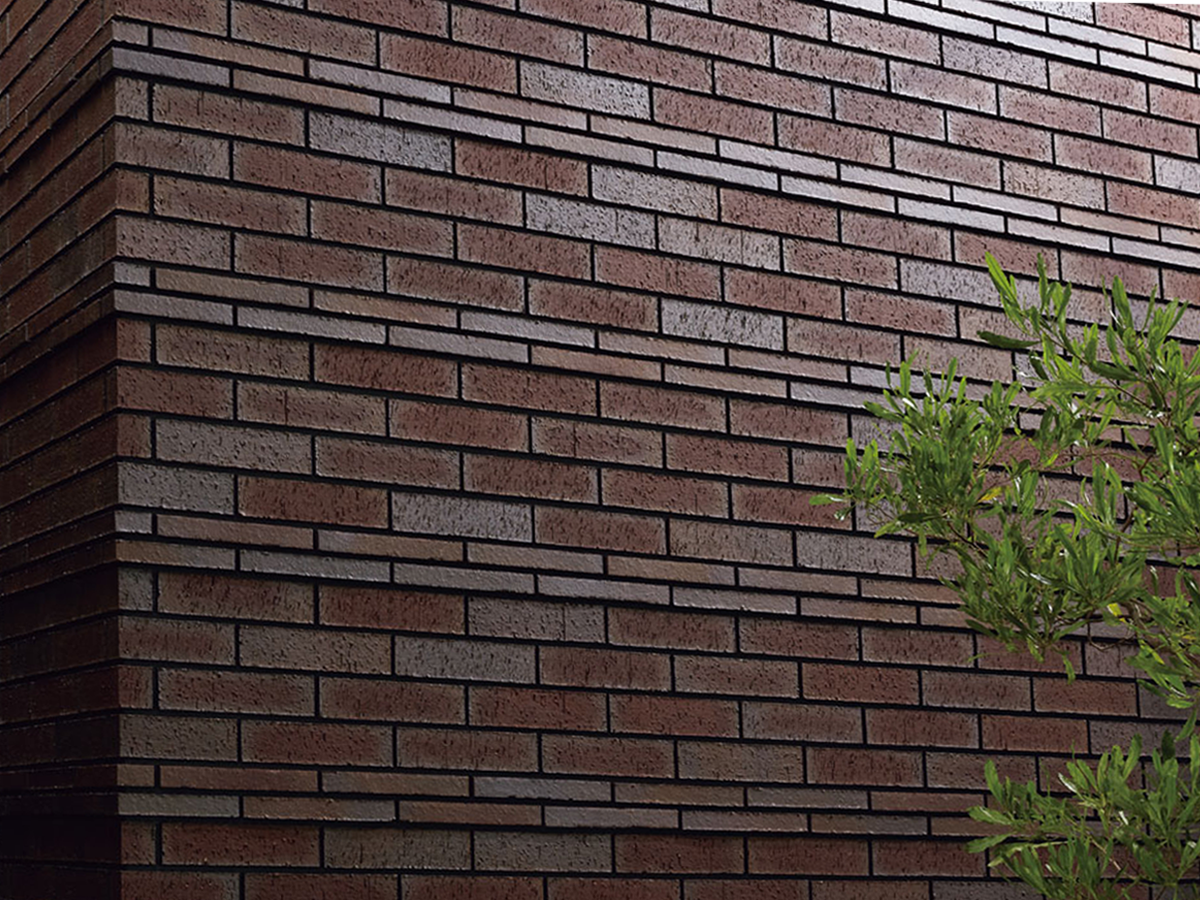

HIIRONE

Color

Spec

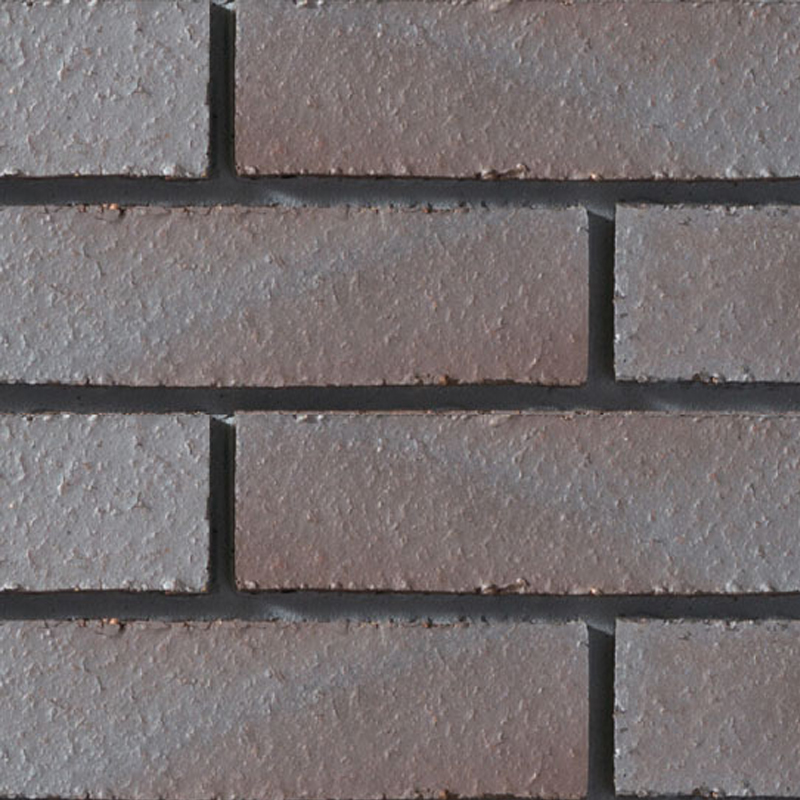

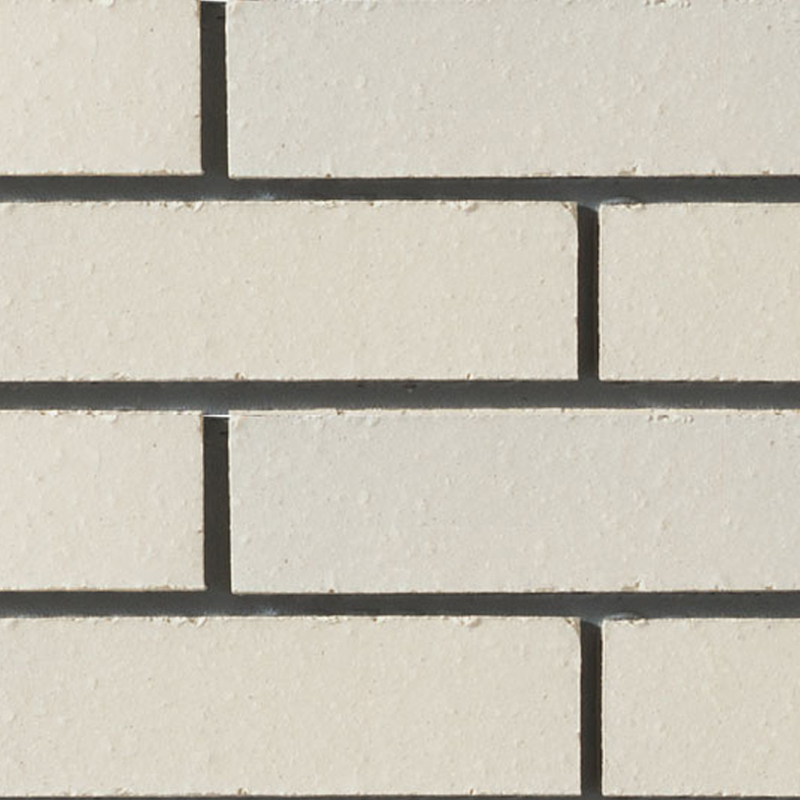

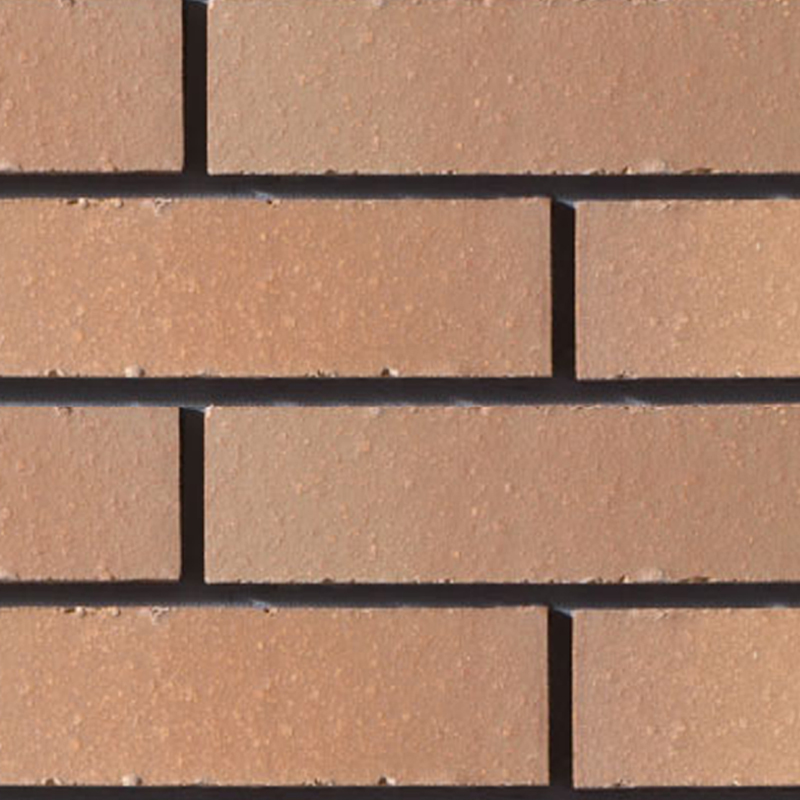

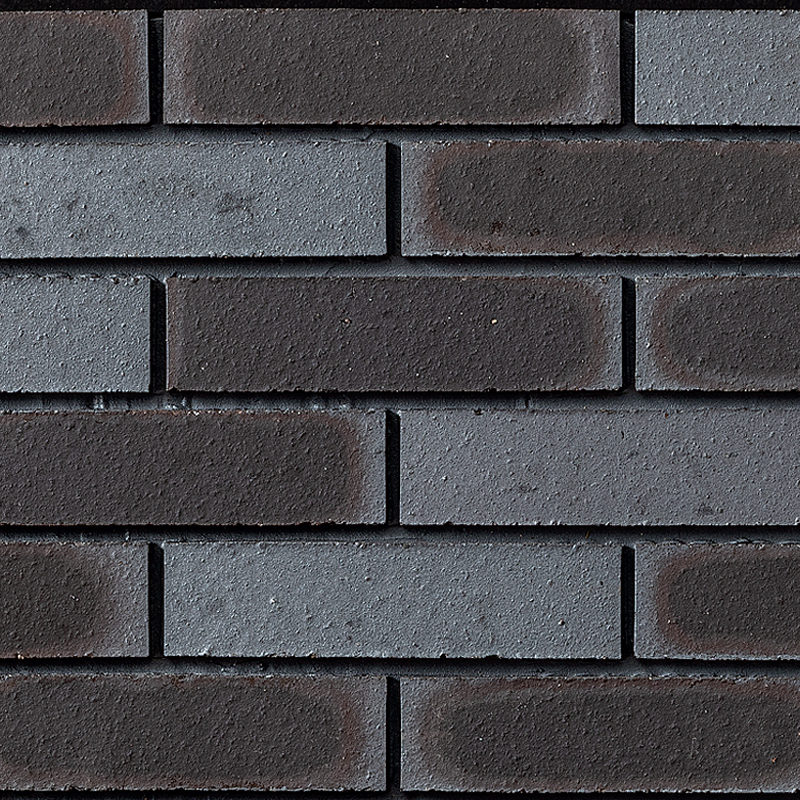

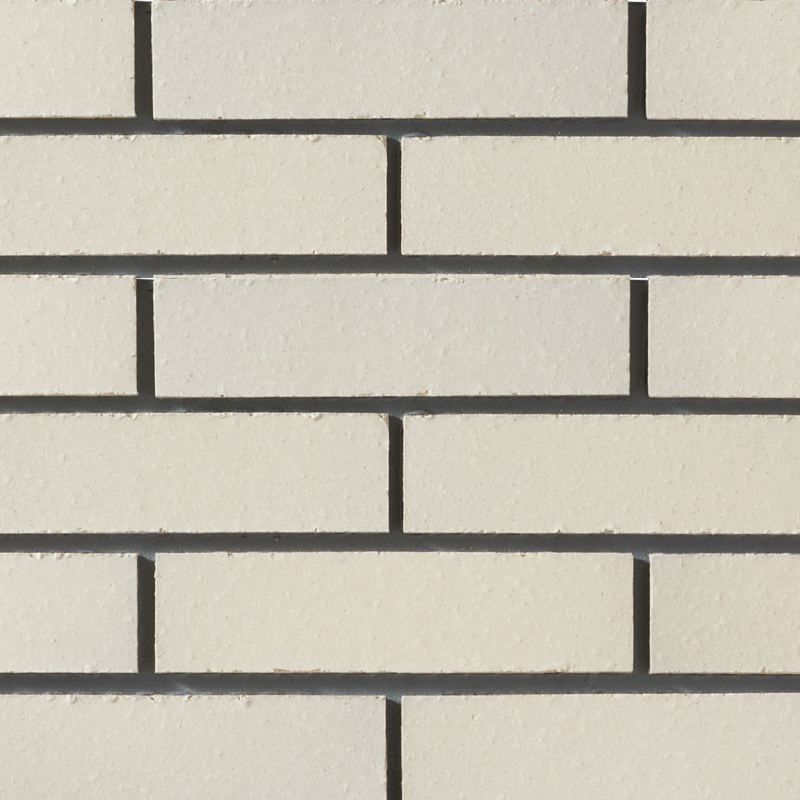

AII / Glazed (N1~N3, GNH,GBS, GKA)

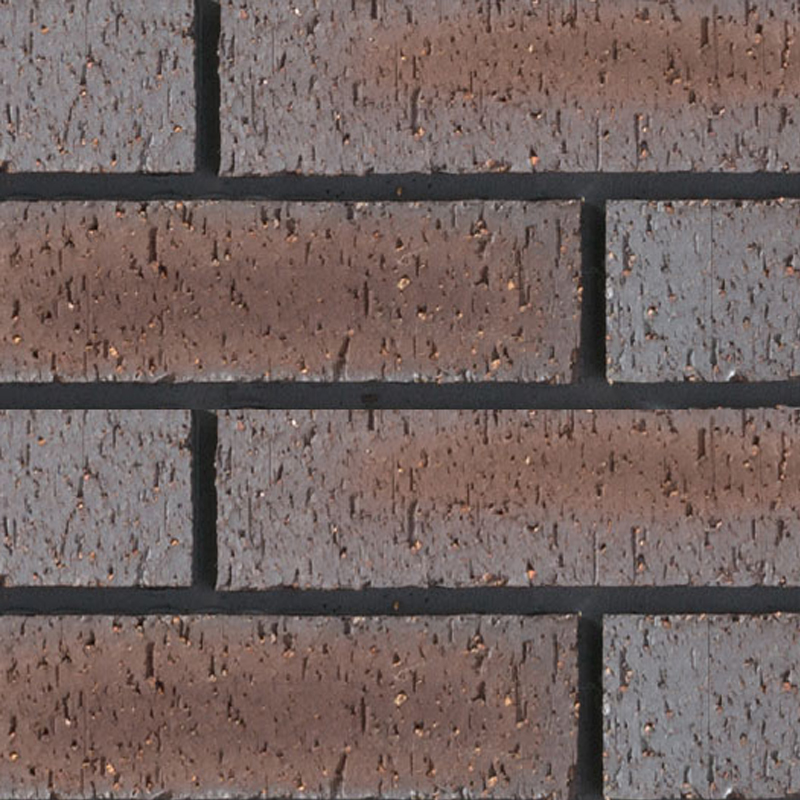

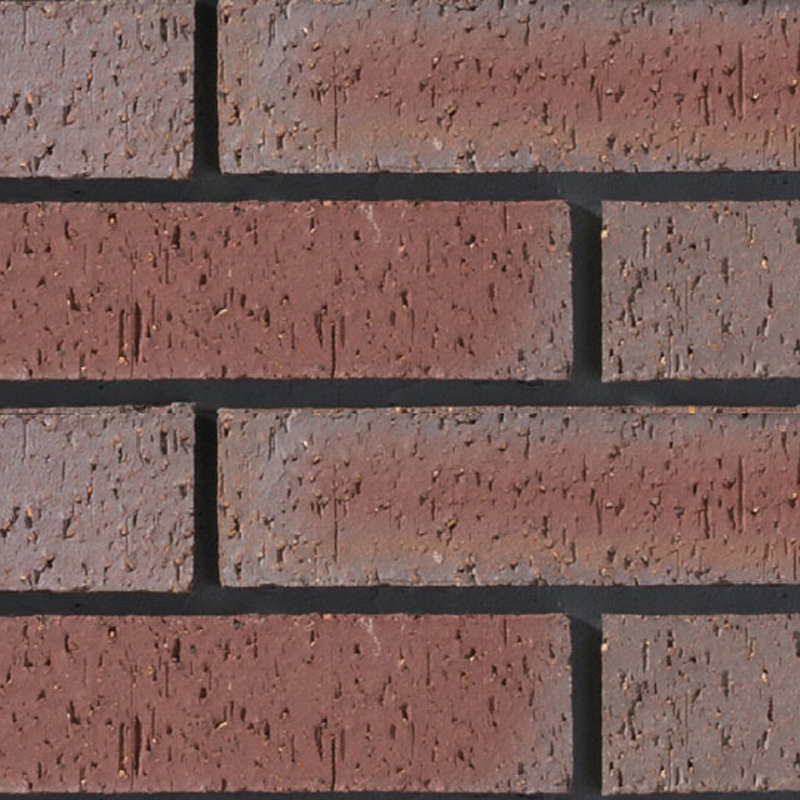

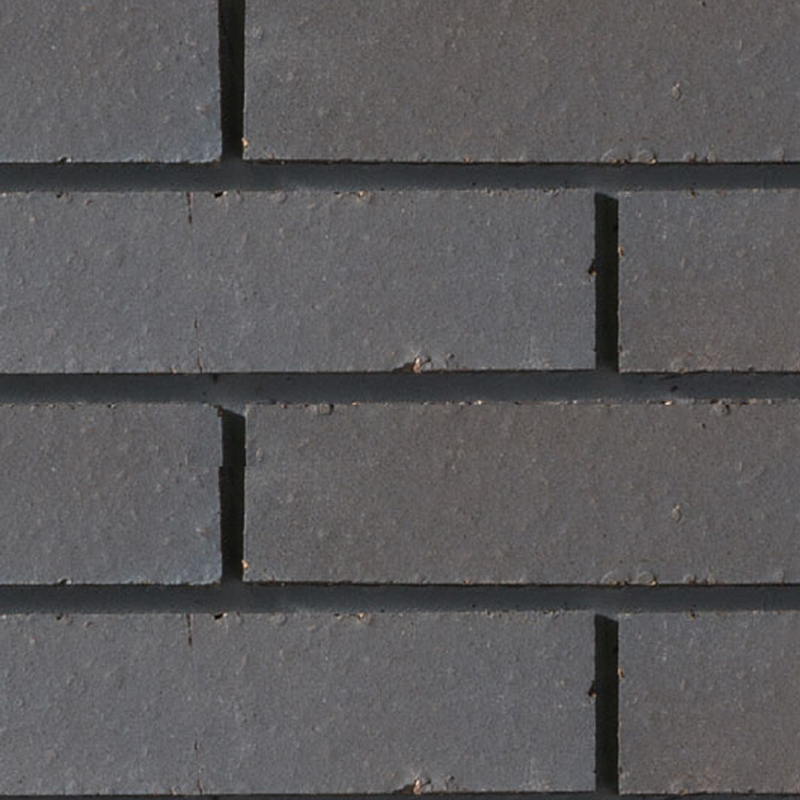

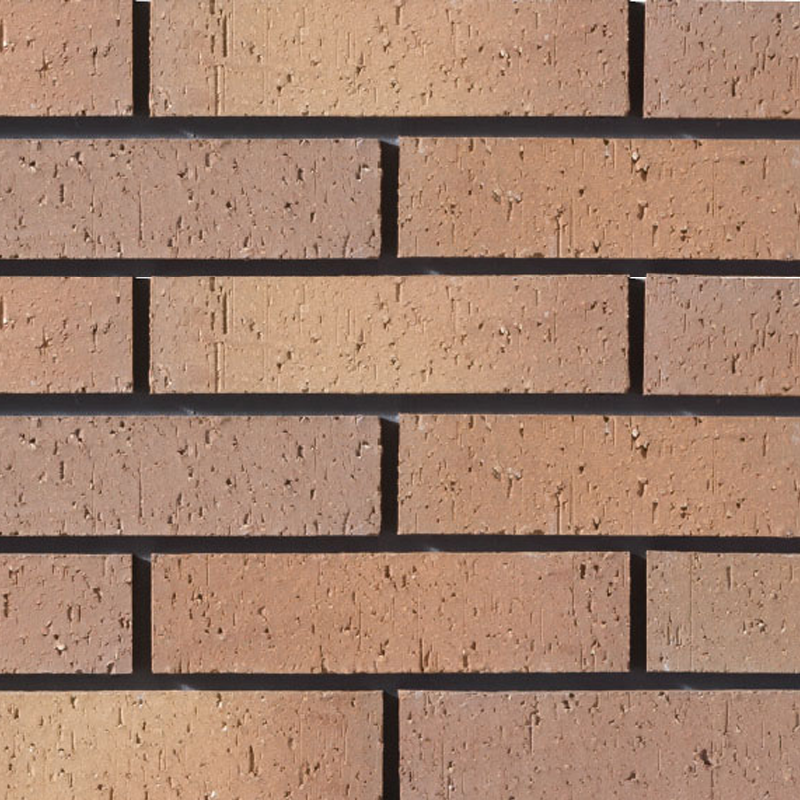

AII / Unglazed (N4~N7, GEE)

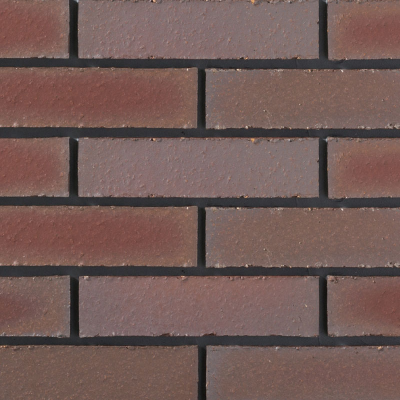

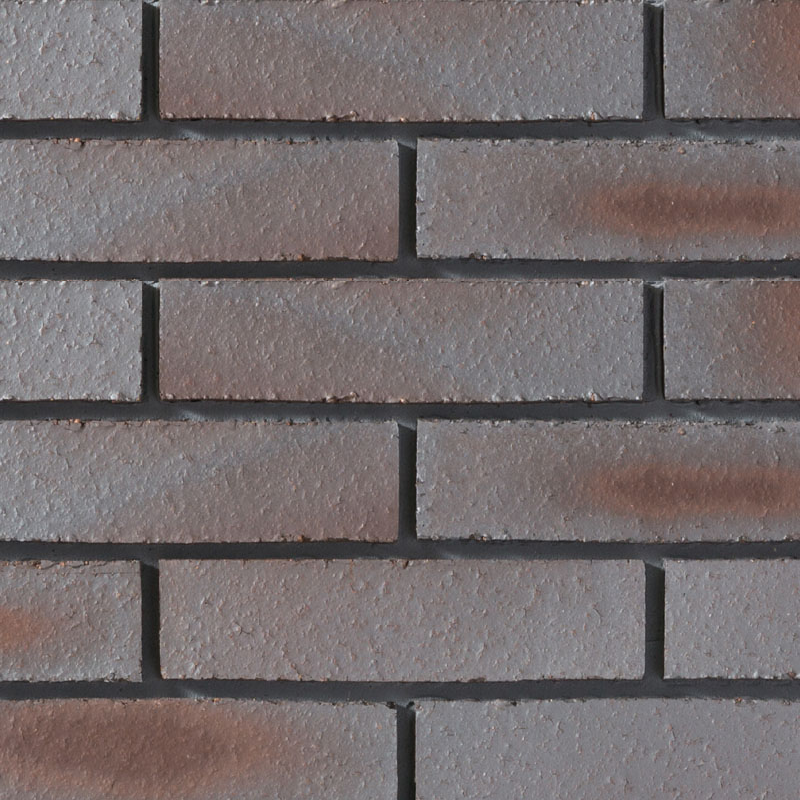

Field Tile (semi) FC‐2/N1~N7

Size/pc	239×60mm
Thickness	12mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/sqm	58pcs

Quantity/ctn	60pcs
Weight/ctn	21.7kg

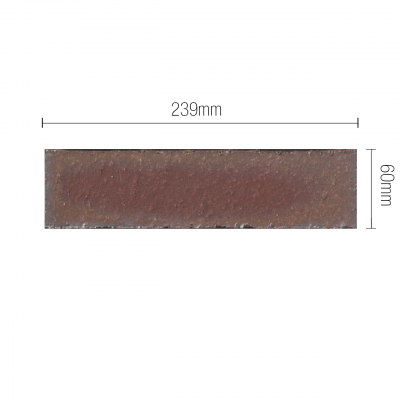

Dimension of piece

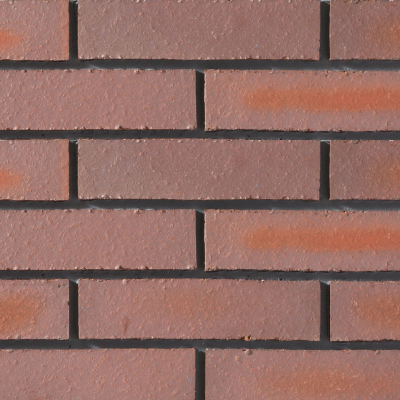

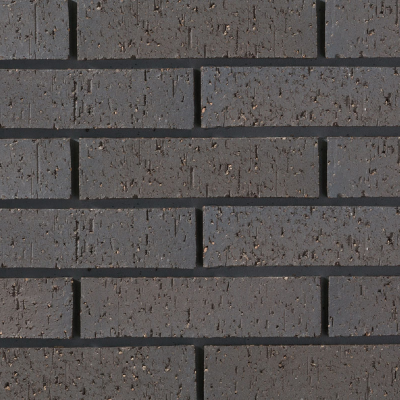

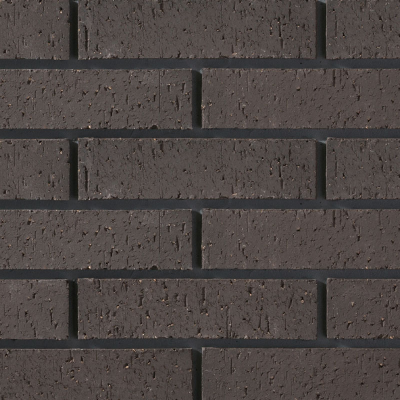

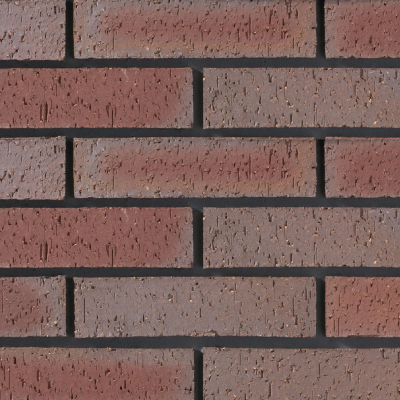

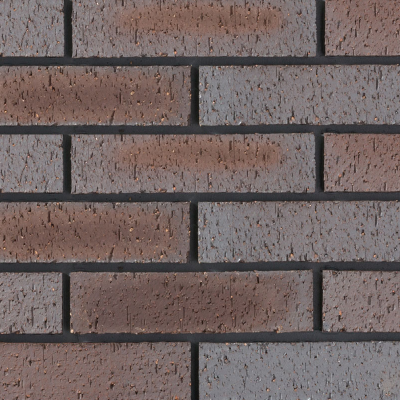

Field Tile (rough) FC‐2RG/N1~N7

Size/pc	239×60mm
Thickness	13mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/sqm	58pcs

Quantity/ctn	56pcs
Weight/ctn	21.8kg

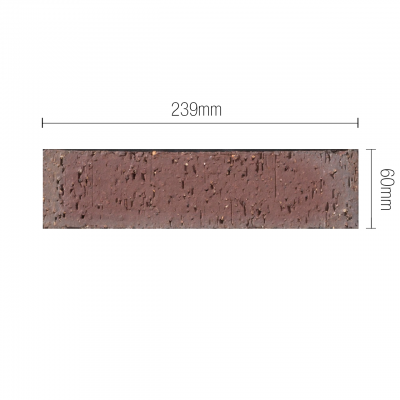

Dimension of piece

Field Tile FC-2/GNH-J1~GBS-1C

Size/pc	239×60mm
Thickness	13mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/sqm	58pcs

Quantity/ctn	56pcs
Weight/ctn	23.4kg

Dimension of piece

Field Tile (semi) / Border FC‐30B/N1~N7

Size/pc	239×30mm
Thickness	18mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/sqm	102pcs

Quantity/ctn	80pcs
Weight/ctn	22.7kg

Dimension of piece

Corner Tile (semi) FC‐13/N1~N7

Size/pc	(172.5+49)×60mm
Thickness	12mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/m	15pcs

Quantity/ctn	48pcs
Weight/ctn	16.2kg

Corner Tile (rough) FC‐13RG/N1~N7

Size/pc	(173.5+50)×60mm
Thickness	13mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/m	15pcs

Quantity/ctn	48pcs
Weight/ctn	17.3kg

Corner Tile (semi) Border FC‐30B/90‐14/N1~N7

Size/pc	(178.5+55)×30mm
Thickness	18mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/m	25pcs

Quantity/ctn	80pcs
Weight/ctn	21.3kg

Corner Tile FC-13/GNH-J1~GBS-1C

Size/pc	(173.5+50)×60mm
Thickness	13mm
Joint	Horizontal 10mm Vertical 8mm
Quantity/m	15pcs

Quantity/ctn	48pcs
Weight/ctn	17.9kg

Installation Material
Adhesive o
Mortar o
Grouting o*
*Can not grout on rough surface

Note:
Back keys are visible from side when not grouted

Calculation

You can calculate necessary cartons per area. Please input square meters or square feet, then you can get approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.

ft²

m²

=0ctn
