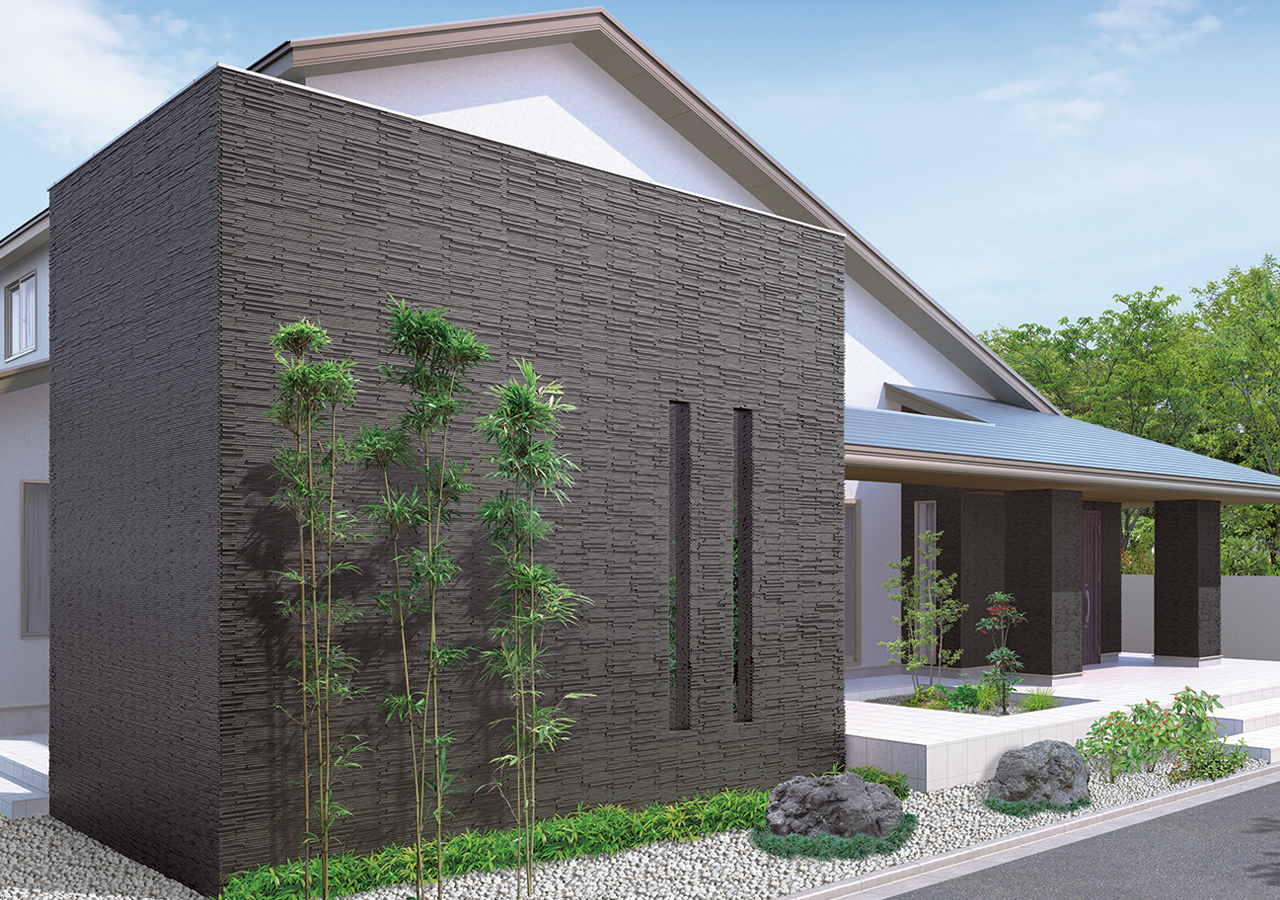

SENTOUSAI
Spec
BI / Unglazed / CE

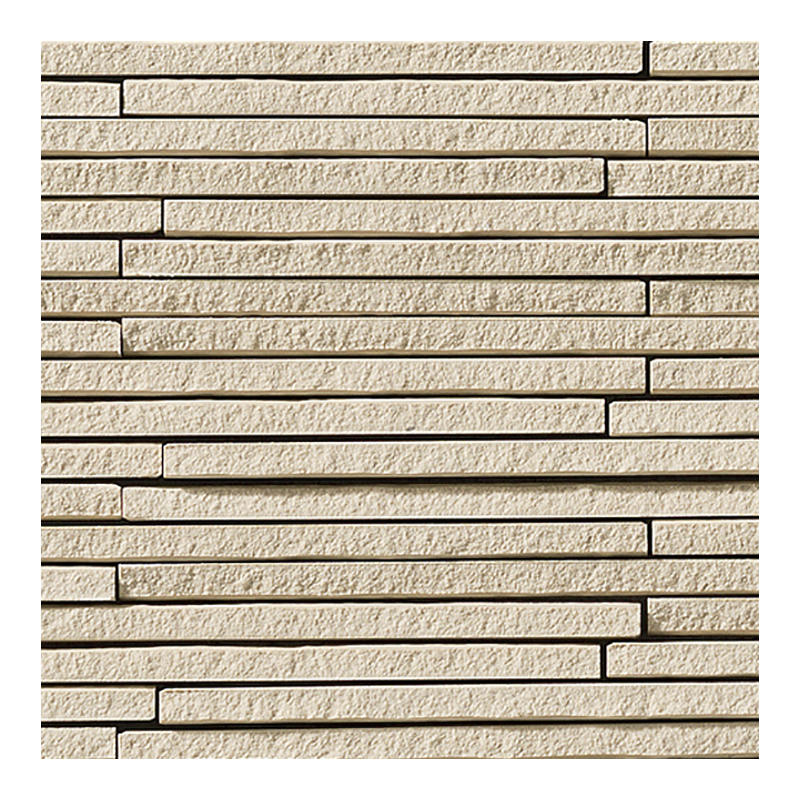

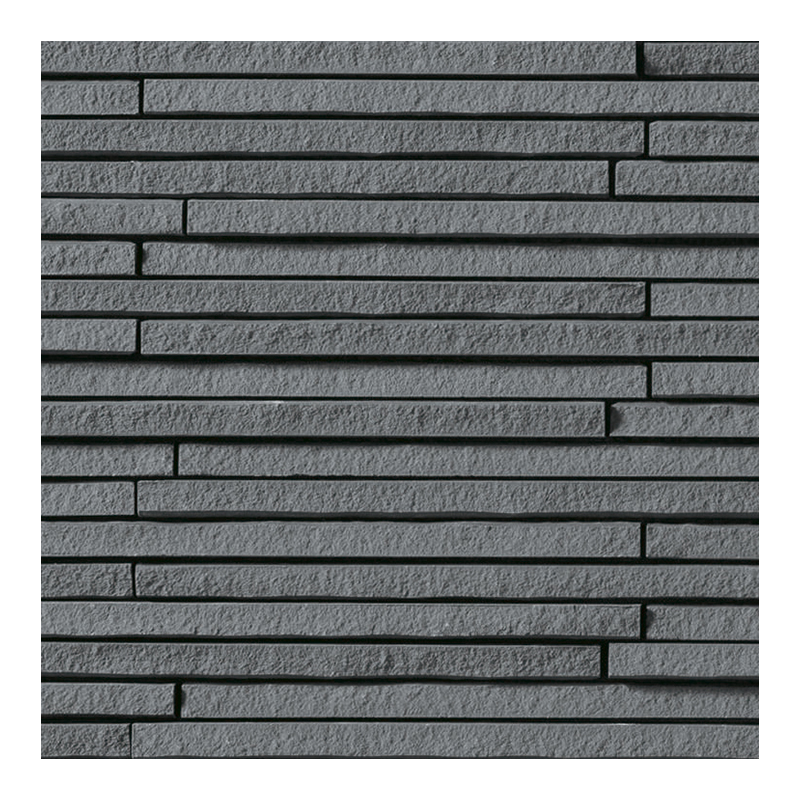

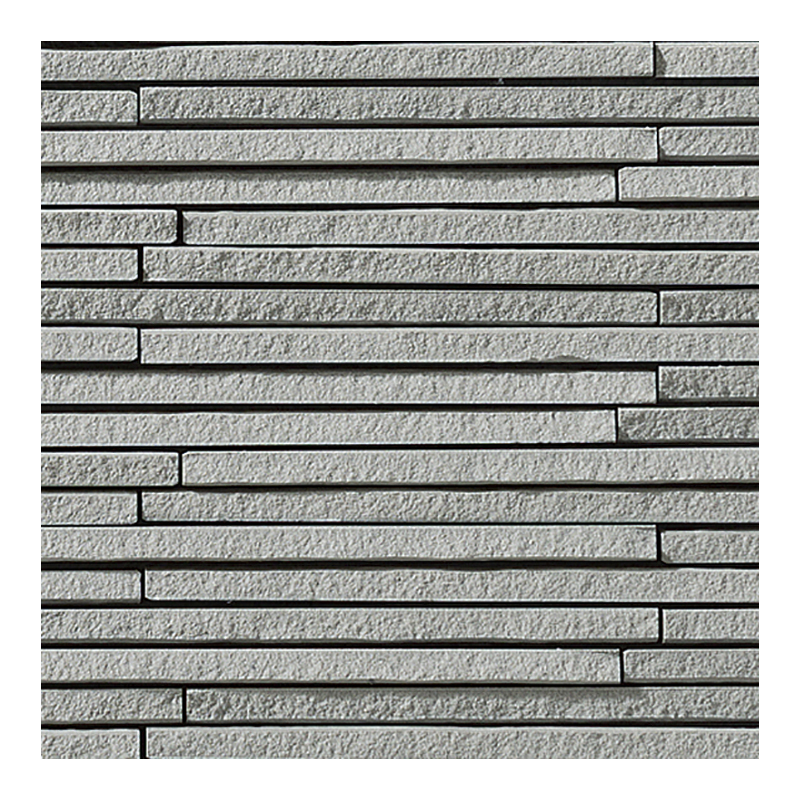

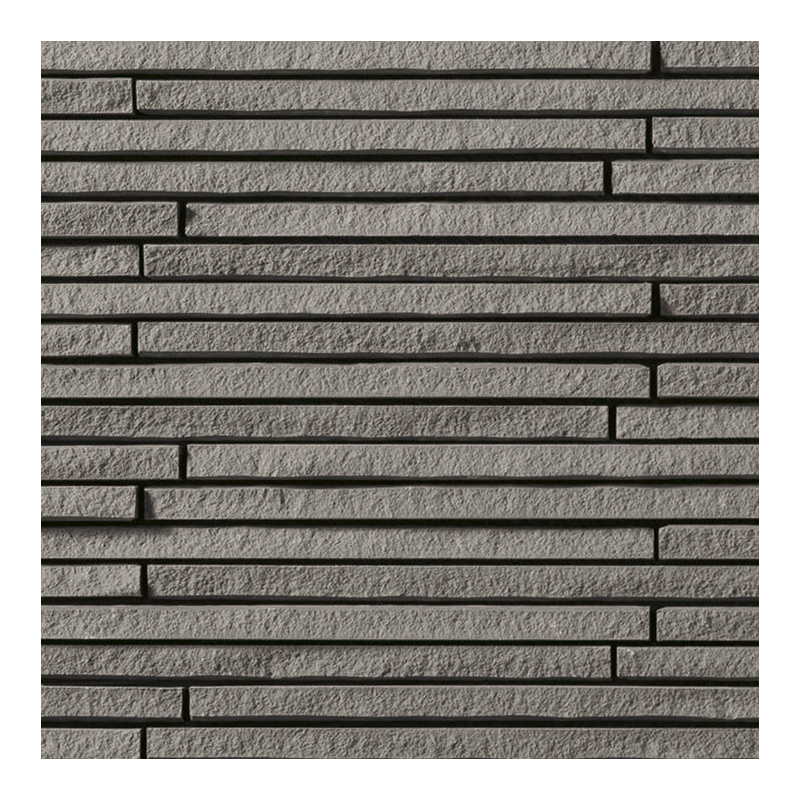

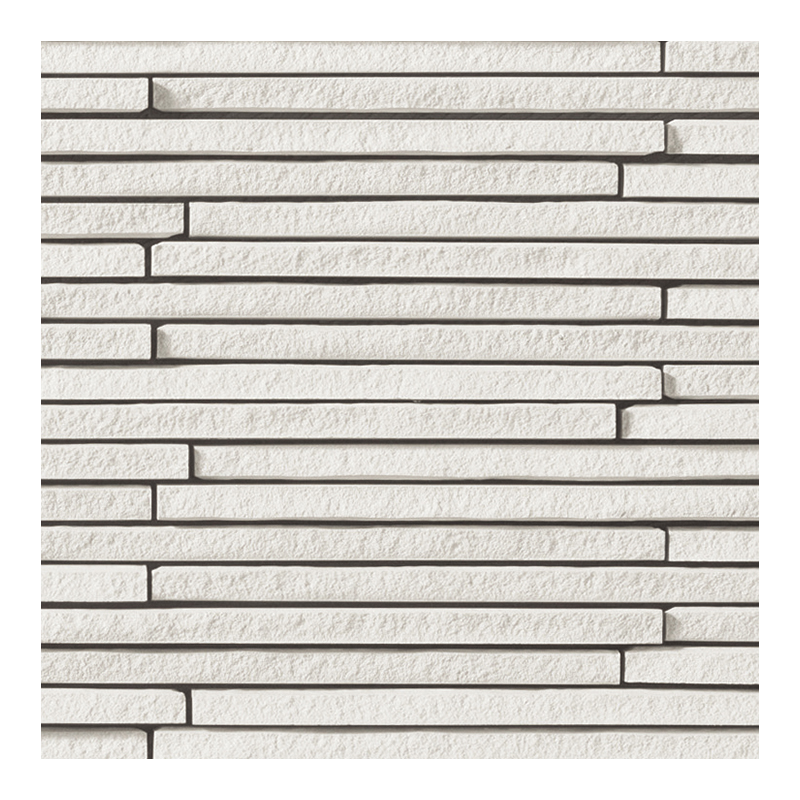

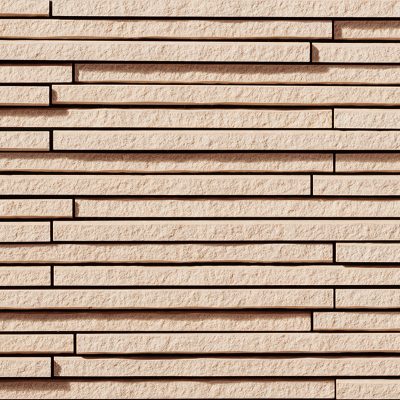

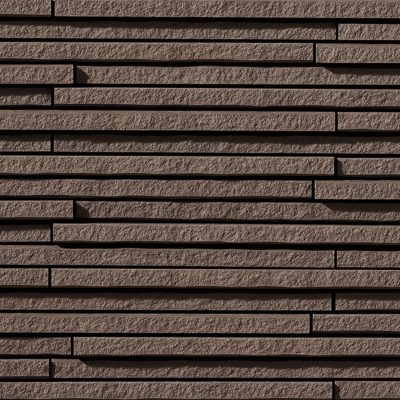

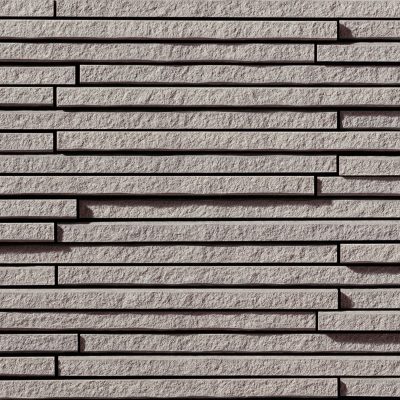

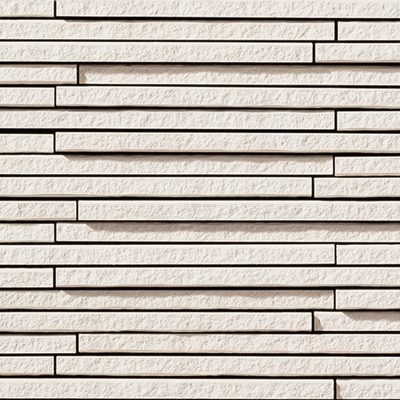

Field Tile HAL-RN/STS-11~STS-15
| Size/pc | 235x13mm |
|---|---|
| Size/sht (Actual) | 235x88mm |
| Size/sht (Nominal) | 237x90mm |
| Thickness | 22mm |
| Joint | 2mm |
| Quantity/sqm | 46.9shts |
| Quantity/ctn | 30shts |
| Weight/ctn | 18.3kg |
-

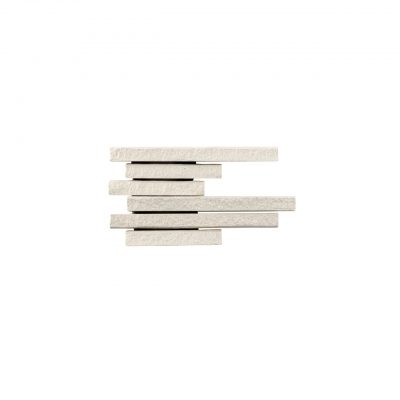

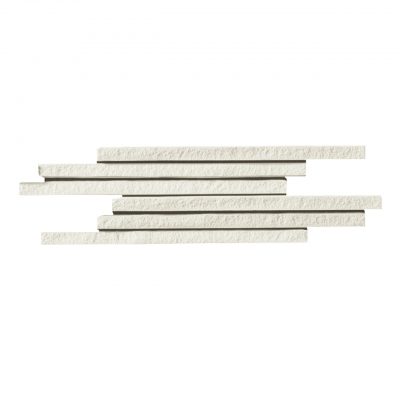

![Dimension of sheet]()
Dimension of sheet -

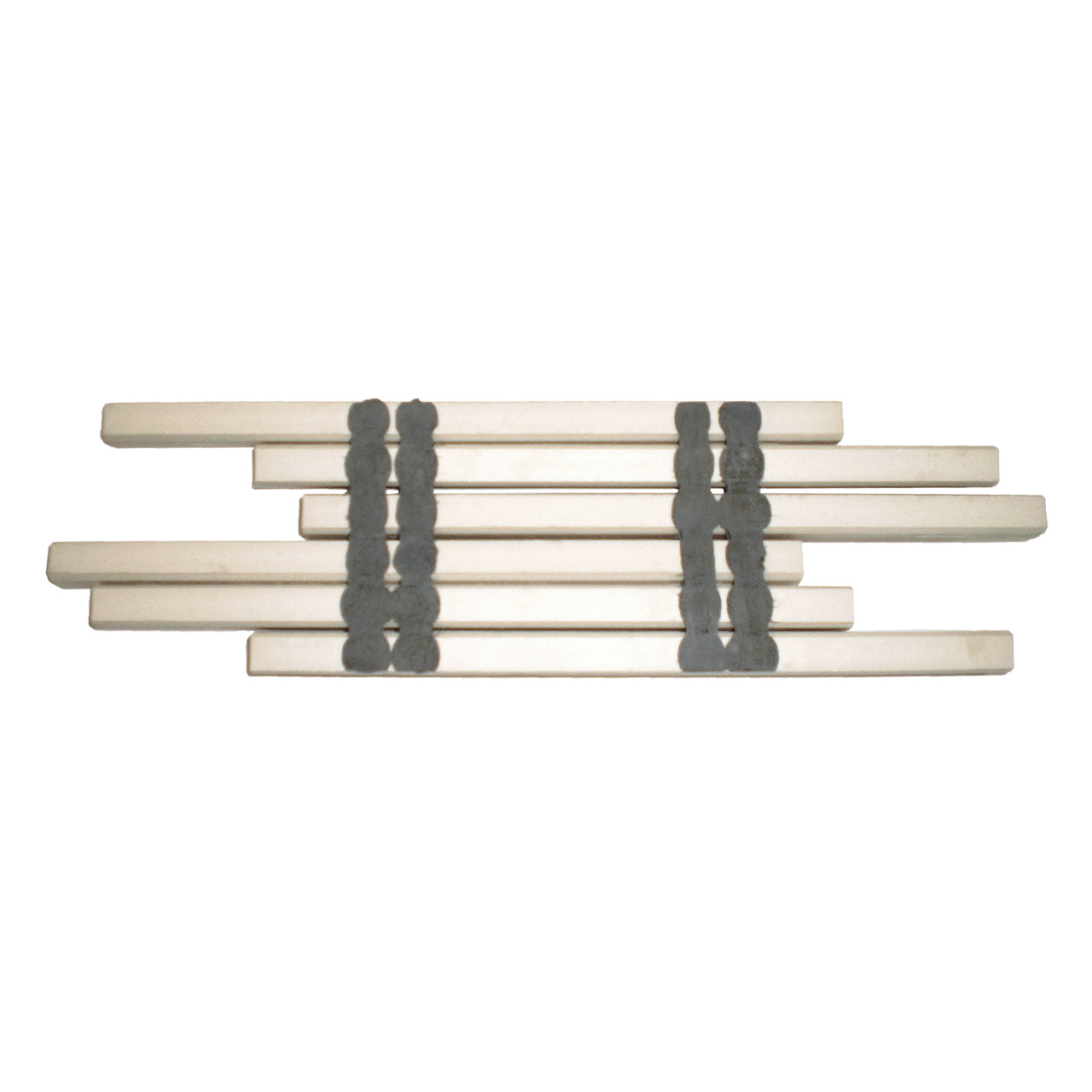

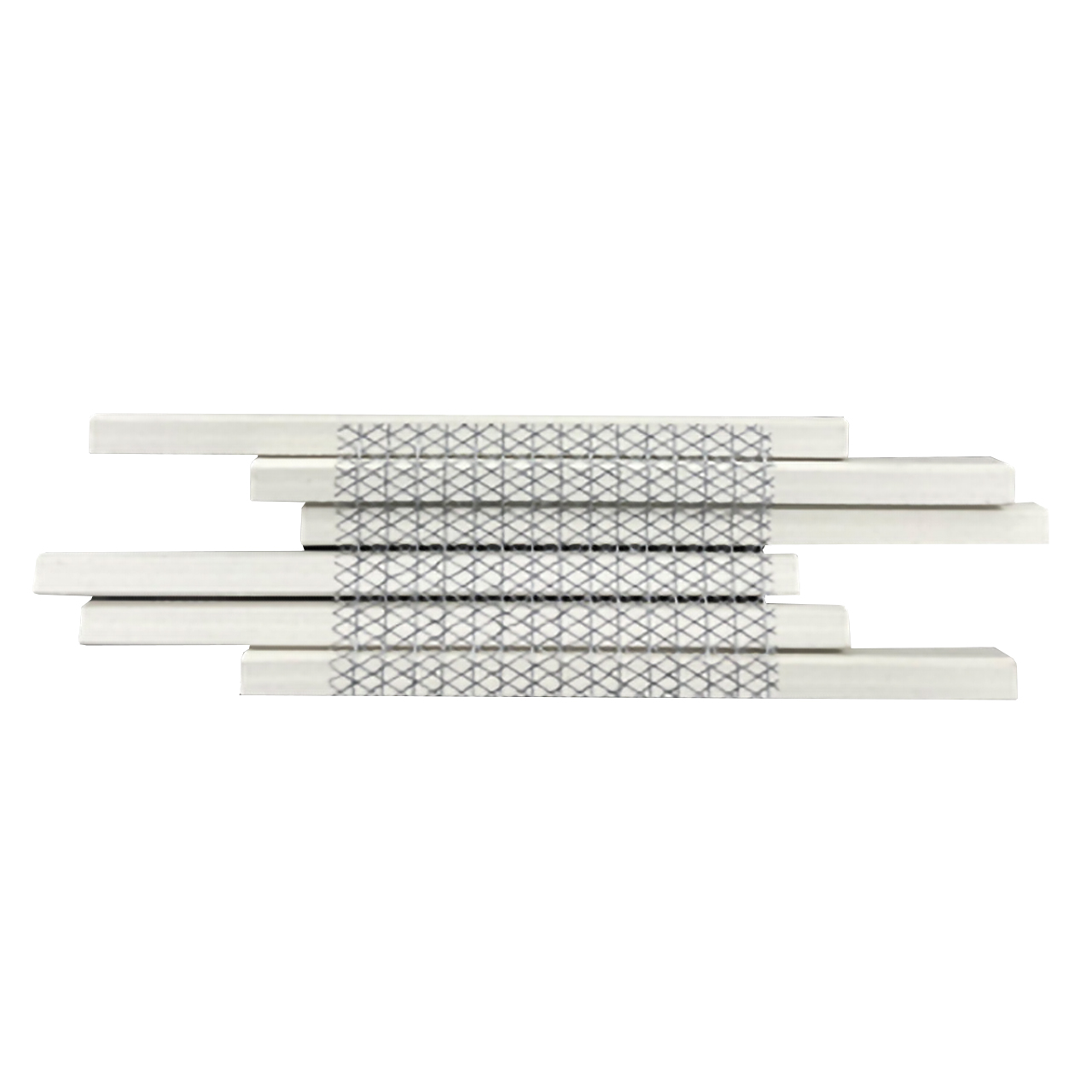

![Mounting : Back net]()
Mounting : Back net
Corner Tile HAL-CN/STS-11~STS-15
| Size/pc | 150x13mm 85x13mm |
|---|---|
| Size/sht (Actual) | 150x88mm |
| Size/sht (Nominal) | 152x90mm |
| Thickness | 22mm |
| Joint | 2mm |
| Quantity/m | 22.3shts |
| Quantity/ctn | 30shts |
| Weight/ctn | 9.5kg |
-
![Dimension of sheet]()
Dimension of sheet -

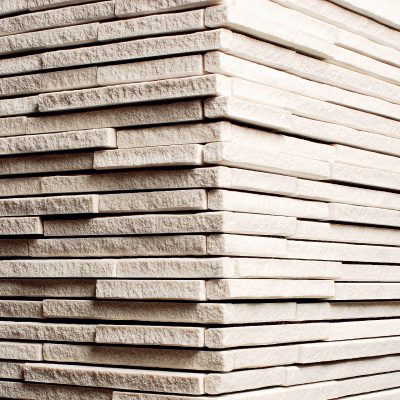

![Installation for corner
Link to more information]()
Installation for corner
Link to more information
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
