BI / Unglazed / CE

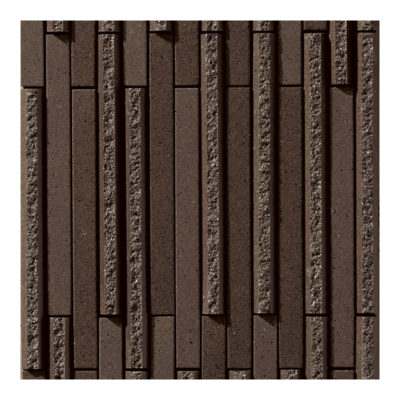

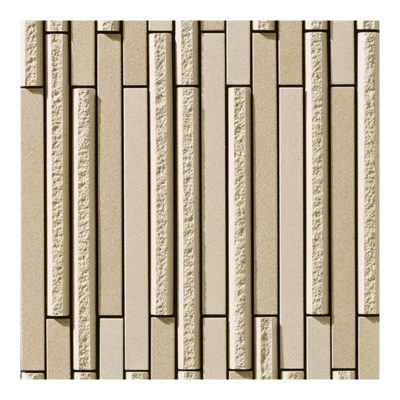

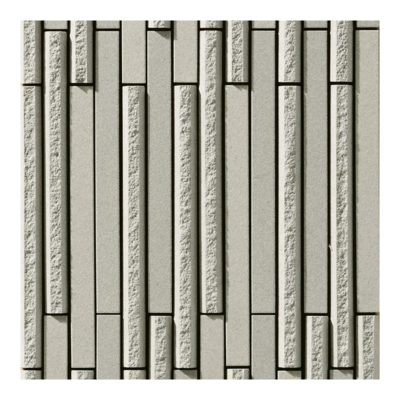

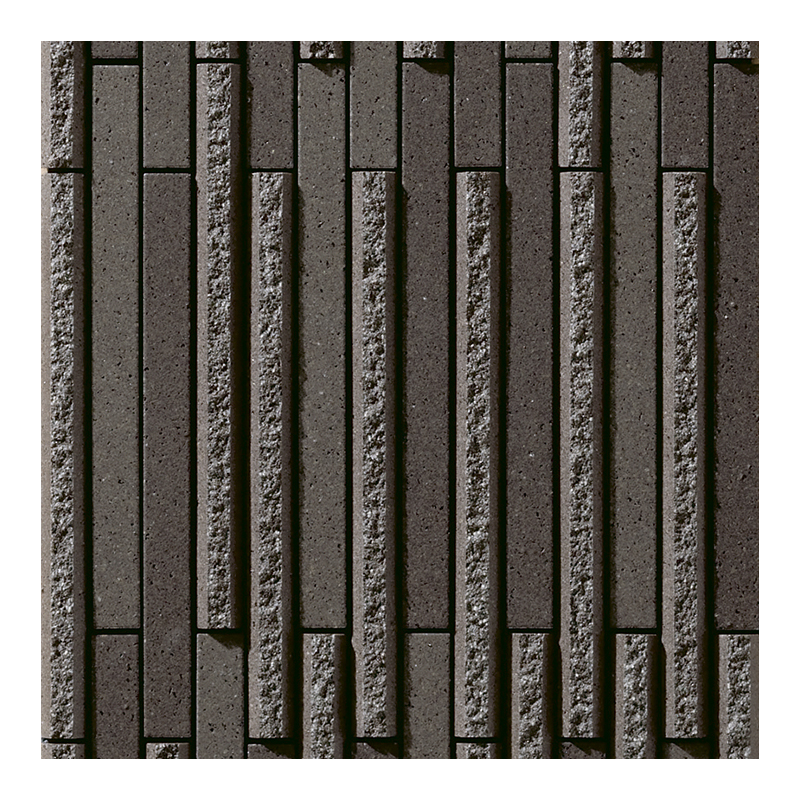

Field Tile DCF-20BNET/OMB-1~OMB-4

Size/pc 19.5x235mm
Size/sht (Actual) 300.9x235mm
Size/sht (Nominal) 303x237mm
Thickness 8mm, 13.5mm Mix
Joint Horizontal 2mm
Vertical 2.1mm
Quantity/sqm 14shts
Quantity/ctn 14shts
Weight/ctn 18.9kg

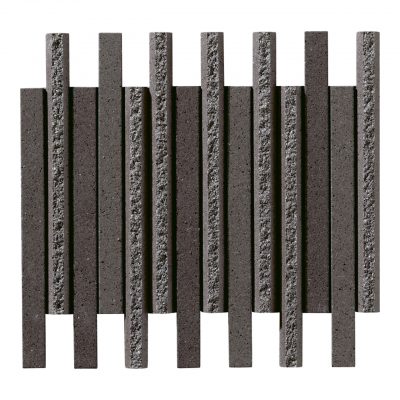

  • Dimension of sheet
    Dimension of sheet

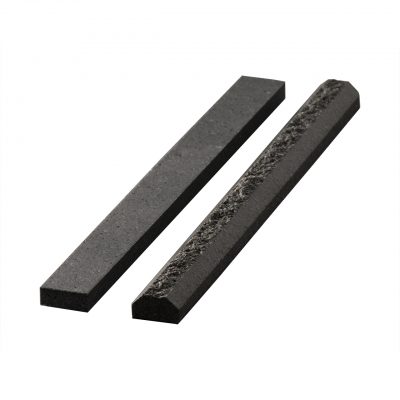

  • Dimension of piece
( 2 type mix )
    Dimension of piece
    ( 2 type mix )

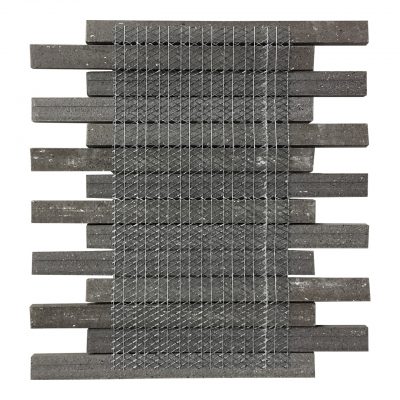

  • Mounting : Back net
    Mounting : Back net

Installation Material
Adhesive o
Mortar ×
Grouting ×

Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.

CE declared


You can calculate necessary cartons per area. Please input square meters or square feet, then you can get approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
