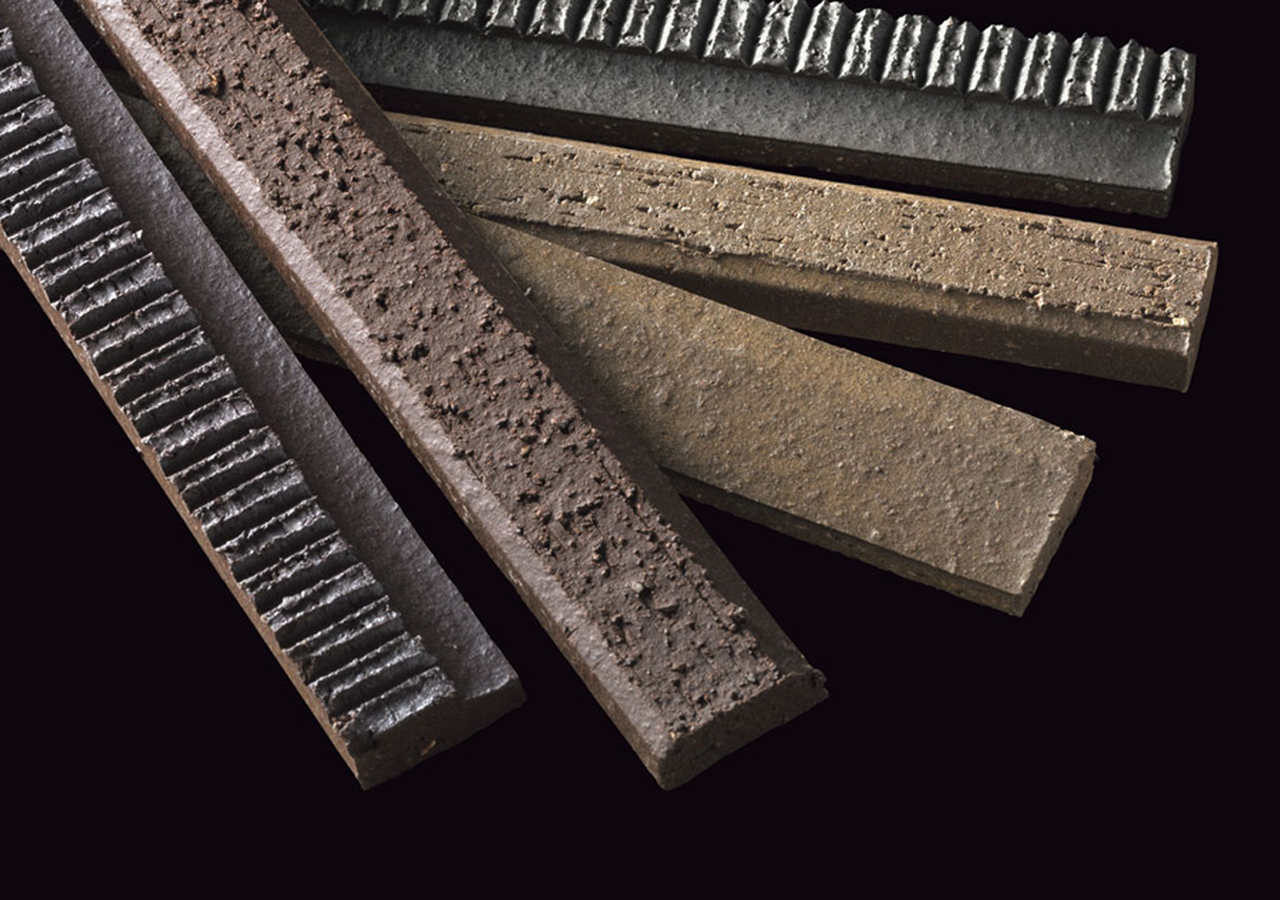

WAGON
Spec
AII / Glazed

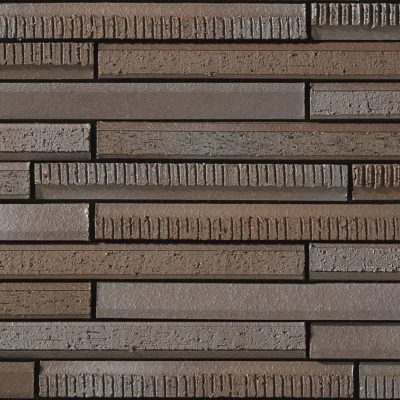

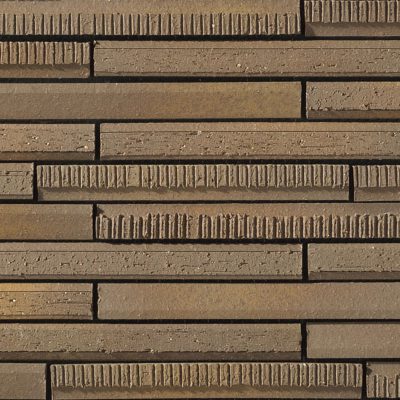

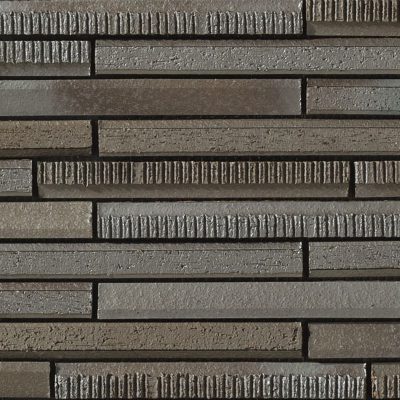

Field tile HAL-30B/WAG-1~WAG-3
| Size/pc | 235x27mm |
|---|---|
| Size/sht (Actual) | 235x297mm |
| Size/sht (Nominal) | 239x300mm |
| Thickness | 12mm |
| Joint | Horizontal 3mm Vertical 4mm |
| Quantity/sqm | 14shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 18.3kg |
-

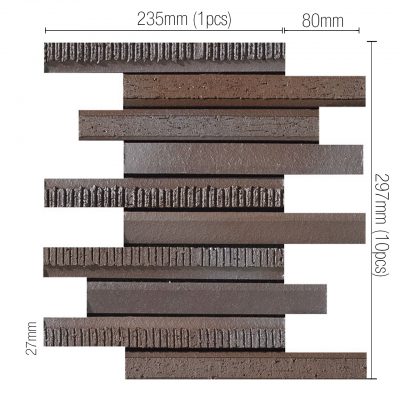

![Dimension of sheet]()
Dimension of sheet
Corner Tile HAL-C/WAG-1~WAG-3
| Size/pc | 149x27mm 114.5x27mm 80x27mm |
|---|---|
| Size/sht (Actual) | 149x297mm |
| Size/sht (Nominal) | 153x300mm |
| Thickness | 12mm |
| Joint | Horizontal 3mm Vertical 4mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 24shts |
| Weight/ctn | 17.8kg |
-

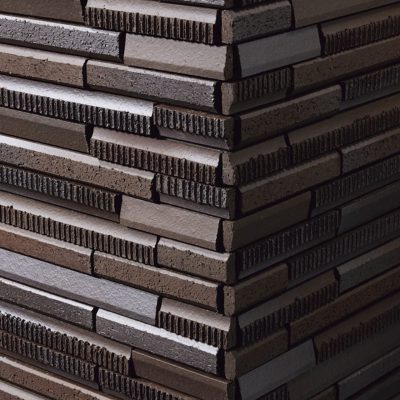

![Installation for corner]()
Installation for corner
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Joint widths may vary even within a sheet.
Colors may vary even within the same batch.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
