SAZANAMI
Spec
Porcelain / Unglazed

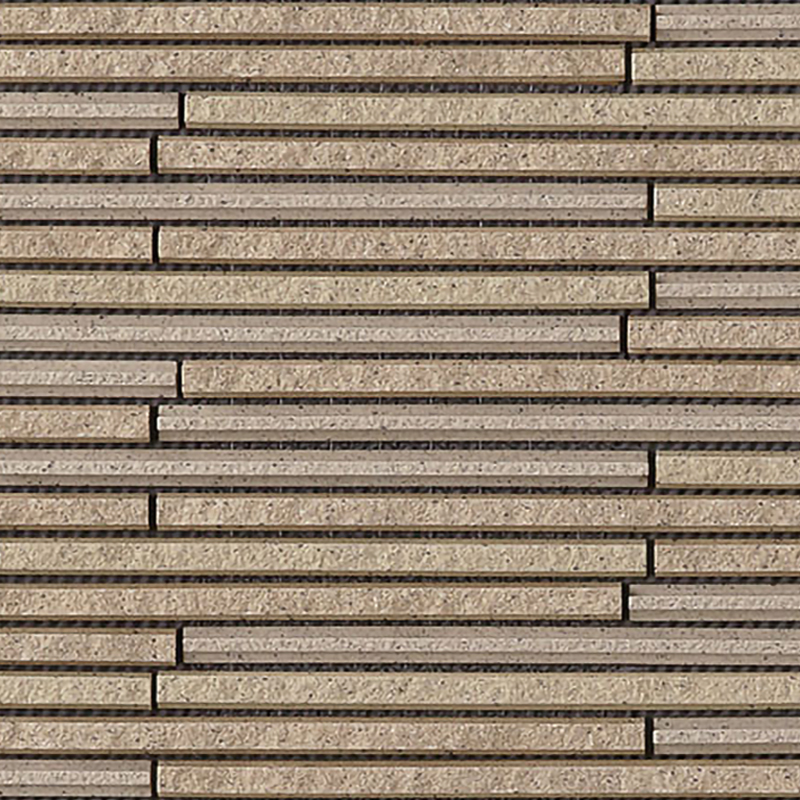

Field Tile HAL-R/SZA-1~SZA-4
| Size/pc | 235x14mm |
|---|---|
| Size/sht (Actual) | 235x297.3mm |
| Size/sht (Nominal) | 237x300mm |
| Thickness | 18mm |
| Joint | Horizontal 2.7mm Vertical 2mm |
| Quantity/sqm | 14.1shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 20kg |
-
![Dimension of sheet]()
Dimension of sheet -
![Mounting : Back net]()
Mounting : Back net
Corner Tile HAL-C/SZA-1~SZA-4
| Size/pc | 151x14mm 82x14mm |
|---|---|
| Size/sht (Actual) | 151x297.3mm |
| Size/sht (Nominal) | 153x300mm |
| Thickness | 18mm |
| Joint | Horizontal 2.7mm Vertical 2mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 24shts |
| Weight/ctn | 20kg |
-
![Dimension of sheet]()
Dimension of sheet -
![Installation for corner
Link to more information]()
Installation for corner
Link to more information
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
